Lumière laser d'animation 1W RGB full-color
- Japan Nichia Diodes for Vivid, Long-Lasting Colors: Imported Nichia diodes (R300mW/G100mW/B600mW) deliver consistent, saturated colors—perfect for small-space ambiance (e.g., warm red for home theater, vibrant blue for small bar dance floors); low light decay ensures 8,000+ hours of use, reducing replacement costs for home or small venue owners.
- Modes de contrôle multiples pour tous les niveaux de compétence :
– Beginners: Use Auto/Sound Active mode (plug-and-play for home parties—syncs with music in seconds);
– Semi-pros: Use ILDA/DMX512 or Pangolin QuickShow (customize logos for small product launches, text for birthday messages);
– Small venues: Master-Slave mode syncs 2-3 units to cover a 50㎡ bar, no need for a complex console. - 60° Wide Scanning + Sharp Beam for Small Spaces: 60° max scanning angle covers a small bar’s dance floor or home theater wall—no blind spots; narrow beam divergence (<1mrad for R/G) ensures sharp text/animations (e.g., movie quotes on home walls, bar brand logos) even at close range (2-5m).
- Quiet Air Cooling for Non-Intrusive Use: Air cooling system operates silently—no noise interference with home movie audio, small bar live music, or café conversations; critical for intimate small spaces where sound quality matters.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Produit
- Lumière laser d'animation 1W RGB full-color
- SKU
- CT-LL-1-SRC3
Description
Technical Specifications
| Model No. | CT-LL-1-SRC3 |
|---|---|
| Paramètres | Interprétation axée sur les valeurs et les paysages |
| Tension d'entrée | AC 100-240V, 50-60Hz (Global wide voltage, compatible with home sockets, small venue power grids, and portable generators — no voltage converters needed) |
| Light Source (Core Advantage: Nichia Quality) | Brand: Nichia (imported from Japan — low light decay, stable color output for long-term home/ small venue use); Power Breakdown: – R: 300mW@638nm (warm red for cozy home theater or bar ambiance); – G: 100mW@520nm (soft green for natural, eye-friendly patterns in small spaces); – B: 600mW@445nm (vibrant blue for vivid accents — stands out in dim small venues); Total Power: 1W (perfect for 20-50㎡ spaces — no over-brightness or energy waste) |
| Beam & Scanning Performance | Beam Specifications: – R: 6×6mm, <1mrad; G: 6×6mm, <1mrad; B: 2×6mm, <0.5×2mrad (narrow divergence for sharp patterns on walls/backdrops — no blurring in small rooms); Scanner System: 20kpps (smooth motion for text/animations in small spaces — avoids jitter for close-range viewing); Max Scanning Angle: 60° (wide enough to cover a small bar’s dance floor or home theater wall — no blind spots) |
| Control & Modulation | Control Modes: – ILDA (for professional programming via software); – Sound Active (syncs with music — ideal for home parties or small bar live shows); – Auto (pre-set animations — plug-and-play for beginners); – DMX512 (sync with small stage lights); – Master-Slave (sync 2-3 units for small multi-light setups); – SD Card (offline custom animations); Modulation: 100k Analog/TTL (smooth color transitions — no “banding” in gradient effects for home entertainment); Control Software: Compatible with US Pangolin QuickShow (user-friendly for semi-pro customization) |
| Durability & Usage | IP Rate: IP54 (dust-tight, splash-resistant — safe for covered café patios or small outdoor tents; protects against accidental spills in bars); Optical Path Sealing: Unique double-layer structure (fully sealed — prevents dust accumulation in home theaters or bar smoke from damaging components); Heat Dissipation: Air cooling (quiet operation — no noise interference with home movies or small venue audio); Working Temperature: -20~35℃ (works in unheated winter home theaters or warm summer patios) |

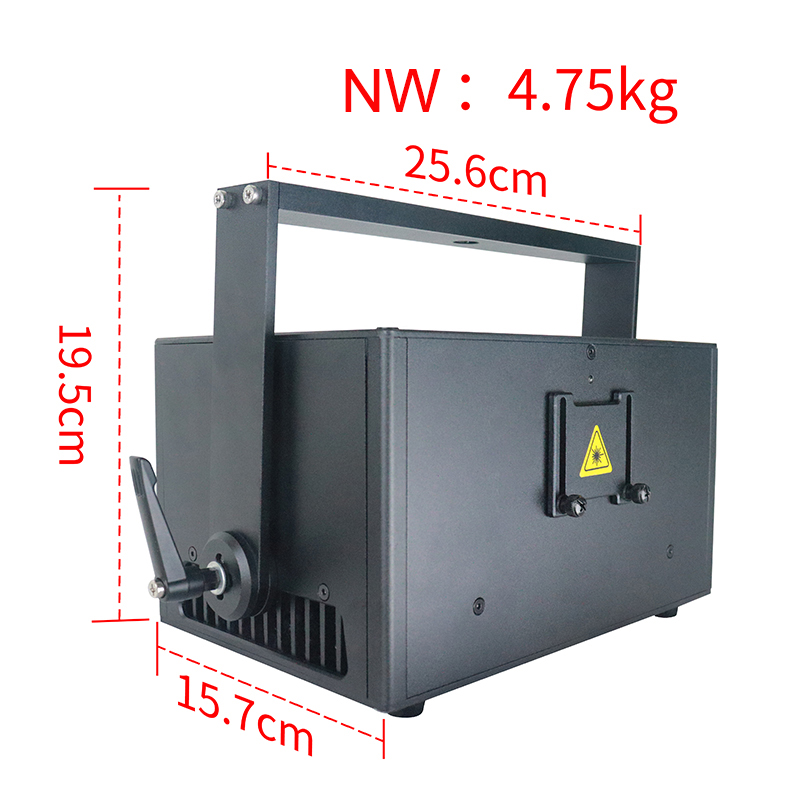

| Dimensions & Packaging | Product Size: 26.5×20×15cm (compact — fits on home shelves, small bar counters, or portable event tables); Net Weight: 4.75kg (ultra-portable — one person can carry and mount it without tools); Carton Packaging: 36×35×30cm, Gross Weight 8.5kg (protective for transport between small events) |
