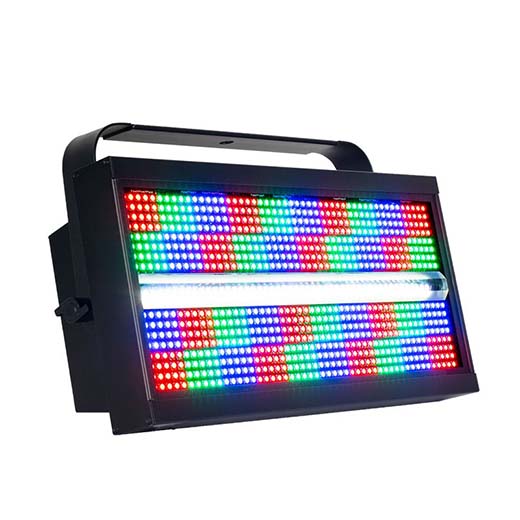

Jolt Panel 800 RGB + 48 LED stroboscopiques blanc froid
- 46 Independent Zones (40 RGB + 6 Cool White) for Custom Effects: 40 RGB zones (121° wide beam) cover large ambient areas (e.g., theater audience seating), while 6 cool white zones (89° focused beam) target key spots (e.g., stage podiums); enable dynamic combinations like:
- Toile de fond dégradée RVB + lumière d'appoint blanche froide ;
- Couleurs de marque spécifiques à une zone pour les stands d'événements d'entreprise ;
Le DMX 141CH permet un contrôle au niveau du pixel, remplaçant 2 ou 3 appareils à zone unique et réduisant la charge de montage. - Flexible Mounting + Locking Power Connections: 180° brackets + Omega Bracket compatibility support wall, truss, or ground installation (e.g., theater prosceniums, concert stages, event booths); locking power in/out prevents accidental disconnections during temporary events (critical for live shows with no downtime).
- Global Auto-Sensing Voltage + 50,000-Hour Lifespan: Auto-sensing 100-240V works in global venues (no voltage adapters needed for international tours); 50,000-hour LED life reduces maintenance costs—for a theater using the fixture 10 hours/week, it lasts ~96 years, avoiding frequent bulb replacements and production delays.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Produit
- Jolt Panel 800 RGB + 48 LED stroboscopiques blanc froid
- SKU
- CT-EX-800
Description
Technical Specifications
| Model No. | CT-EX-800 |
|---|---|
| Paramètres | Interprétation axée sur les valeurs et les paysages |
| Power Supply & Consumption | Input Voltage: 100–240V 50Hz/60Hz (Auto Sensing) – No manual voltage adjustment; compatible with global indoor grids (e.g., 120V in North America, 230V in Europe) and portable event generators; Max Power Consumption: 300W (2.7A@120V60Hz, 1.4A@230V50Hz) – Balances brightness and energy efficiency; stable for 8+ hours of continuous use (e.g., all-night theater shows or 4-hour corporate galas). |
| Dual Light Source (RGB + Cool White) | RGB LEDs: 800 x 0.5W SMD LEDs (40 independent zones) – 121° wide beam (covers large areas like audience seating or stage backdrops); wavelength: Red 620–630nm, Green 515–525nm, Blue 460–470nm (vivid, standard RGB hues for brand-themed events); Cool White LEDs: 48 x 10W SMD LEDs (6 independent zones) – 89° focused beam (targets key areas like podiums, stage performers, or product displays); color temperature 6500–7000K (cool white, flatters skin tones for photos/videos); LED Life: 50,000 Hour Average – Reduces replacement costs for high-use venues (e.g., theaters with weekly shows) or long-term installations (corporate lobbies). |
| Effects & Presets | Built-in Program Macros: 25 RGB macros (e.g., color chases, gradient waves) + 9 cool white macros (e.g., strobe pulses, dimming cycles) – Plug-and-play effects for quick setup (no DMX console needed for small events); Strobe Control: Max 25Hz (high-energy peaks), Min 0.35Hz (subtle accents) – Adjustable for moods: 20-25Hz for concert encores, 0.35-5Hz for wedding speeches. |
| Control & Dimming | Control Protocol: DMX – Compatible with all mainstream DMX consoles (MA Lighting, Avolites); DMX Modes: 8 options (6/9/13/18/36/41/126/141CH) – – 6CH (basic: on/off, master dimming, macro selection) for venue staff; – 141CH (advanced: zone-by-zone color/dimming/strobe) for pro crews; Dim Modes: 6 Presets – Standard (general use), Stage (theater scene changes), TV (live broadcasts), Architectural (ambient lighting), Theatre (soft transitions), Stage 2 (fast effects); Dim Speed: 0.1–10 Seconds (adjustable for smoothness: 10s for theater fades, 0.1s for concert peaks); LED Refresh Rates: 900~25kHz (adjustable – 25kHz for video shooting to avoid flicker in live streams or TV recordings). |
| Display & Installation | Display: LCD display with 4-button touch menu – Intuitive operation in dark backstages; easy to switch DMX modes, adjust refresh rates, or select presets; Connections: Power locking in/out (secure, anti-drop for temporary event rigs); Mounting: 180° mounting bracket system + Omega Bracket compatibility – Flexible installation: wall mounts (theater prosceniums), truss clamps (concert stages), or ground stands (event booths). |
