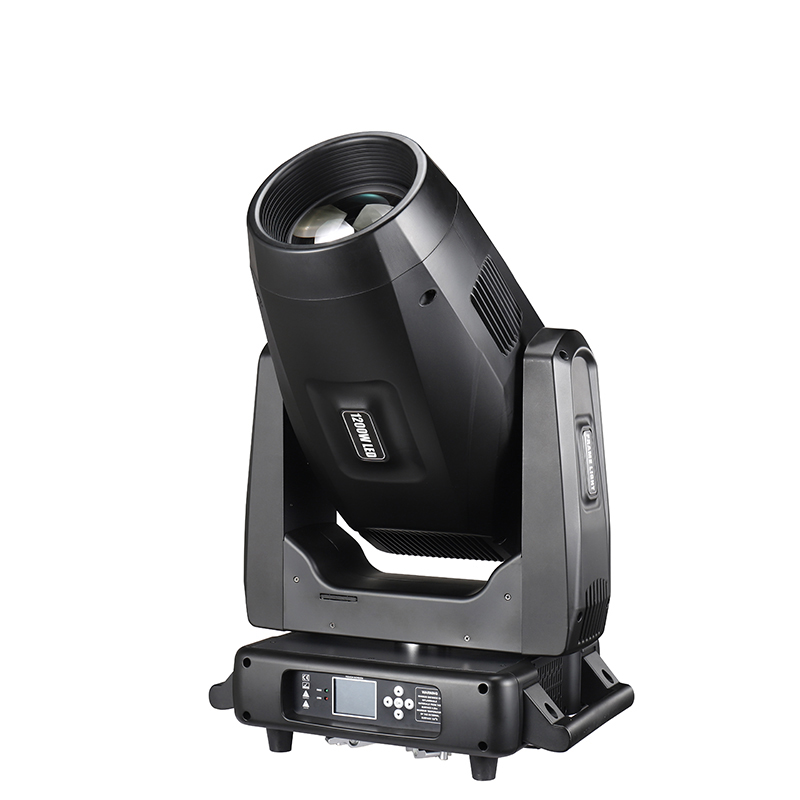

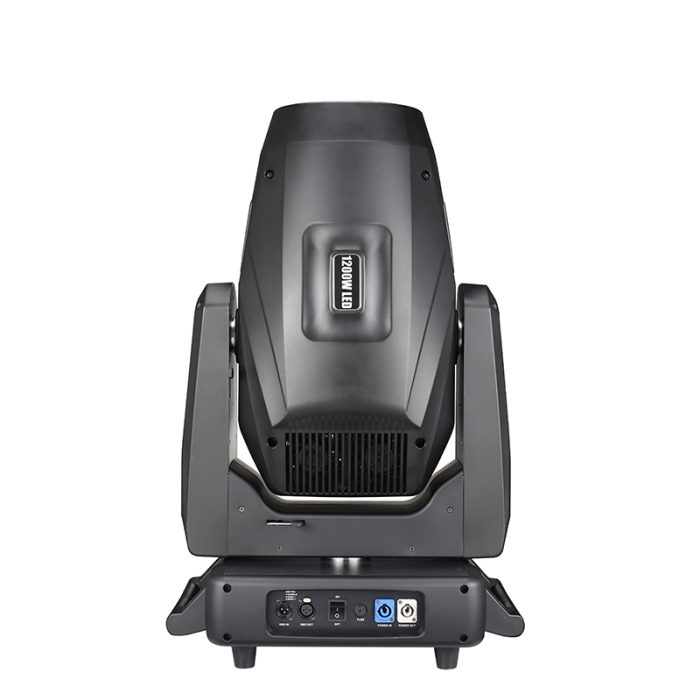

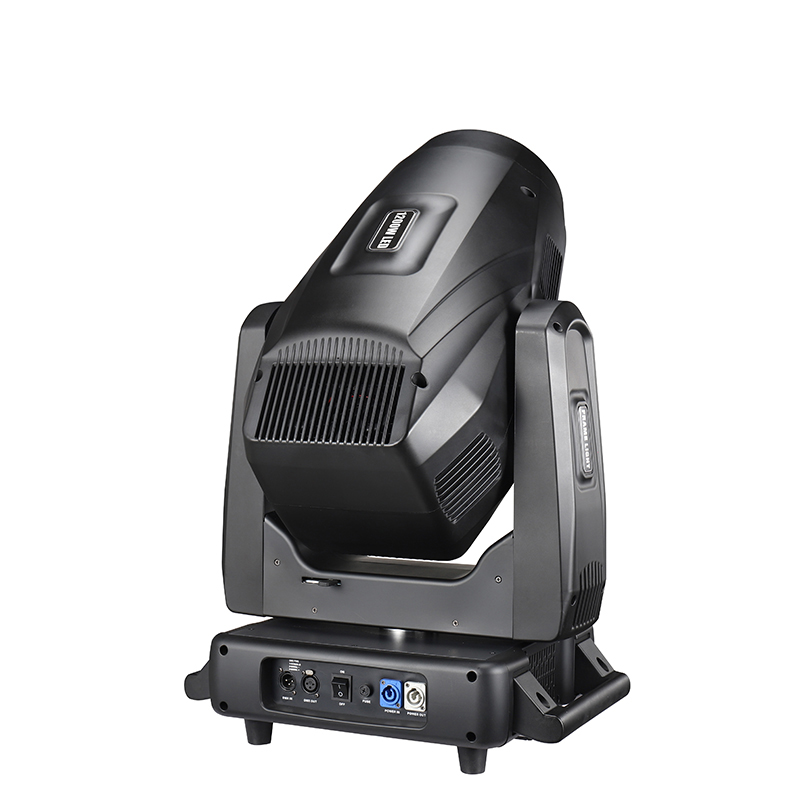

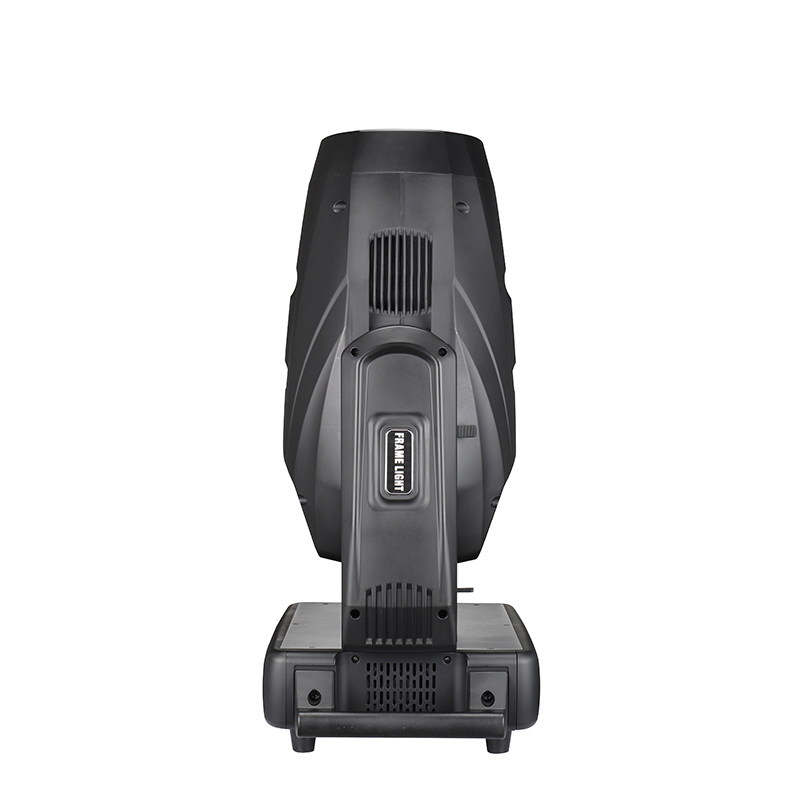

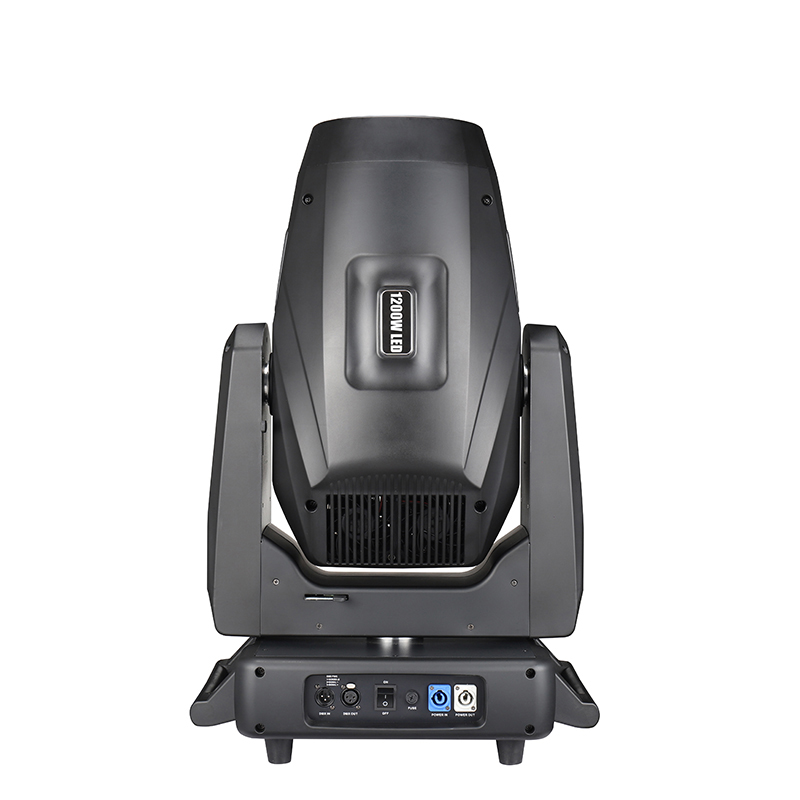

1200w Cutting Pattern Wash Beam 4in1 LED Moving Head Light with CMY CTO
- High-power 1020W LED module with 38000LM luminous flux and 50,000-hour long lifespan
- Dual CRI modes: Standard (Ra>70) & High CRI (Ra>90) for accurate color reproduction
- Advanced color control: Independent CMY mixing + CTO (2800K-6500K) + 6 fixed colors
- Versatile optical effects: Overlayable prisms (3-faced + 6-faced linear) + dynamic effect wheel (flames/water)
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Product
- 1200w Cutting Pattern Wash Beam 4in1 LED Moving Head Light with CMY CTO
- SKU
- CT-MP-1200-LCCT
Description
Technical Specifications
| Model No. | CT-MP-1200-LCCT |
|---|---|
| Input Voltage | AC100-240V, 50/60Hz |
| Rated Power | 1400W |
| Light Source | 1020W LED module |
| LED Life | 50,000 hours |
| Color Temperature | 6500K |
| Frontal Lens Caliber | 150mm (for greater performance) |
| Color Rendering Index (CRI) | Standard mode Ra>70; High CRI mode Ra>90 |
| Luminous Flux | 38000LM |
| Signal Interface | 3-pin XLR (5-pin XLR optional) |
| Control Mode | DMX512, RDM, Auto Mode, Master-Slave, Sound Activation |
| Channel Mode | 36CHs |
| Display System | 2.8-inch touch LCD display (Chinese/English, 180° rotation) |
| Fixed Color | 6 colors + open position |
| Color Mixing System | Independent CMY color mixing system |
| Color Temperature Adjustment | Independent CTO 2800K-6500K linear adjustment |
| Prisms | Rotating 3-faced prism + 6-faced linear prism (can be overlaid) |
| Effect Wheel | Dynamic effects (simulated dynamic flames, gurgling water, etc.) |
| Fixed Gobo Wheel | 11 plug-in fixed gobos (outer diameter 25.4mm) + open position |
| Rotating Gobo Wheel | 7 pluggable gobos (outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm) + open position |
| Framing System | 4 individually positionable shutter blades (each can be closed separately, rotatable +/- 90°) |
| Frost System | Dual atomization system |
| Iris System | 6%~100% smooth adjustment |
| Beam Aperture | 5.5°~60° fast motorized linear zoom |
| Dimming System | 0-100% linear adjustment |
| Strobe System | Max frequency 25Hz (supports random strobe & pulse strobe) |
| Pan | 540° (16-bit precision scanning) |
| Tilt | 270° (16-bit precision scanning) |
| Pan/Tilt Motor | Five-phase motor with magnetic encoding positioning function |
| Protection Rating | IP20 |
| Working Environment | 0-45℃ |
| Product Size | 510*345*800mm |
| Carton Size | 730*690*590mm |
| Product Net Weight | 43KG |
| Product Gross Weight | 51.5KG |
| Product Appearance | Flame retardant, high temperature resistance, folding clamp |
