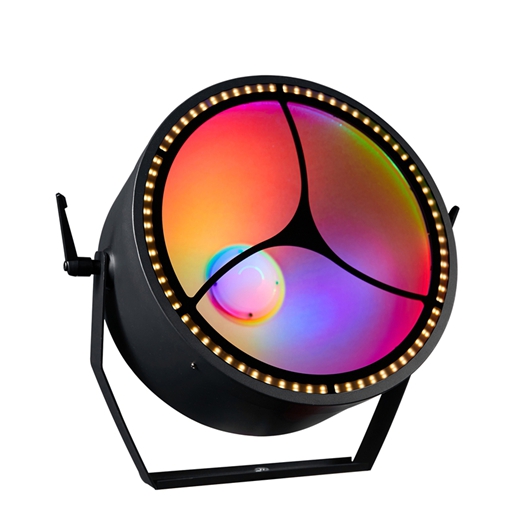

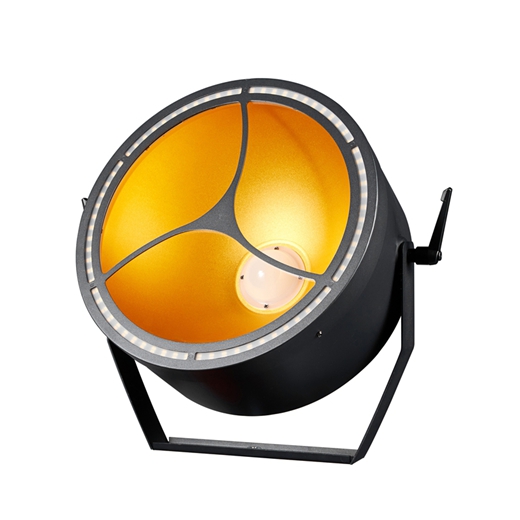

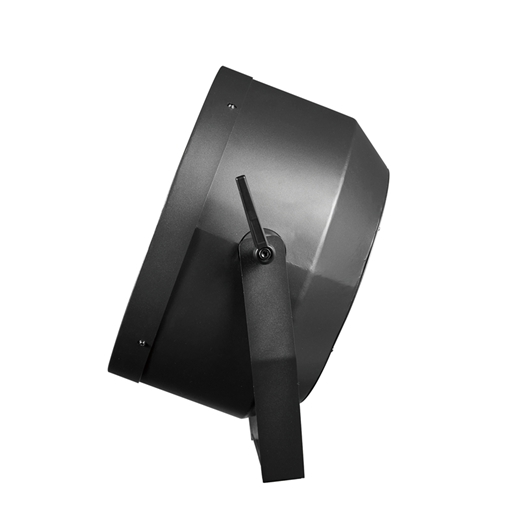

200W Retro Colorful LED Backlight
- Triple-Light-Source Synergy for Layered Indoor Lighting: 200W main LED (bright key lighting) + 5050 full-color LED (ambient coloring) + 5730 warm light (soft fill) work together to create rich layers:
– Bar scenes: Main LED for dance floors + full-color LED for wall gradients + warm light for seating areas;
– Wedding dinners: Warm light for dining tables + full-color LED for backdrop hues + main LED for speech stage;
Replaces 3 separate fixtures, cutting rigging time and equipment costs by 50%.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Product
- 200W Retro Colorful LED Backlight
- SKU
- CT-ER-200
Description
Technical Specifications
| Model No. | CT-ER-200 |
|---|---|
| Parameter | Value & Scene-Oriented Interpretation |
| Power Supply & Consumption | Input Voltage: AC 100V~240V 50/60Hz (Global wide voltage, compatible with indoor venue grids and portable event generators—no converters needed for cross-region gigs); Rated Power: 200W (balanced for triple light sources + cooling system—stable for 8+ hours of continuous use, e.g., all-night bar events or 4-hour wedding receptions) |
| Triple Light Source System | Main LED: 200W lamp beads (core bright lighting for key areas: small stage performers, bar dance floors); 5050 Full-Color LED: Ambient coloring (neon hues for clubs, pastels for weddings) to enhance venue atmosphere; 5730 Warm Light: Soft fill light (2700-3000K) to reduce shadows on audiences or dining areas (ideal for wedding dinners or small theater seating); Beam Angle: 77° (focused for stage/key spots), Spot Angle: 102° (wide coverage for audience/ambient areas) |
| Control & Effects | Channels: 5CH/13CH/16CH optional – – 5CH (basic: on/off, effect selection, brightness) for venue staff; – 16CH (advanced: single-light-source dimming, macro editing) for pro crews; Effect Modes: 3 types – Strobe (1-20Hz, high-energy peaks), Marquee (dynamic chasing, dance floor accents), Built-in macro function (pre-set scenes like “wedding mode”); Control Modes: DMX (professional customization), Automatic (pre-set loops), Sound control (audio-synced to music—no console needed for bars) |

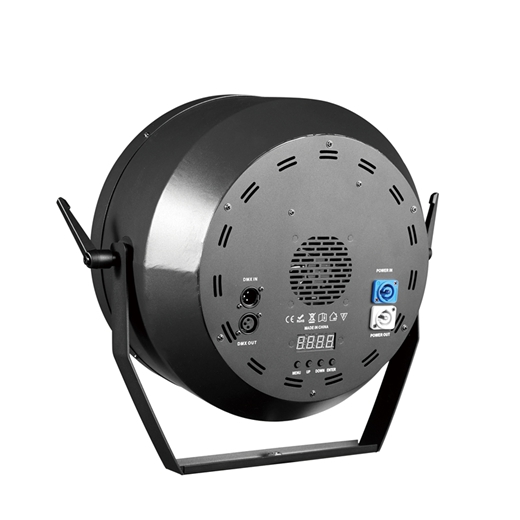

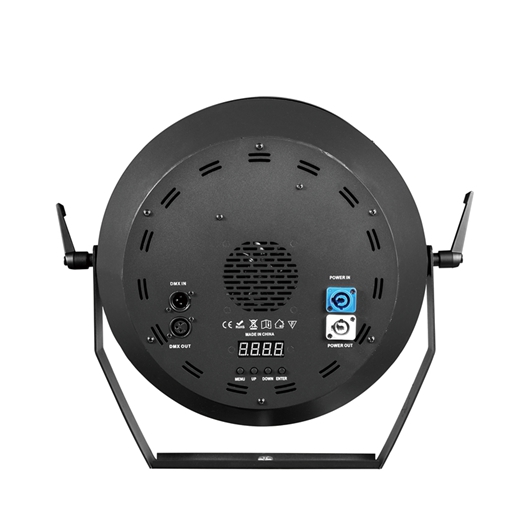

| Durability & Operation | Data Connection: Standard DMX512 three-core input/output (supports daisy-chaining 2-3 units for 200+㎡ spaces); Operation Display: Button + LCD digital tube (clear interface in dark backstages; easy to switch modes or adjust parameters); Protection Level: IP20 (indoor dust-proof—safe for bars, theaters, or community halls; not for outdoor/humid use); Working Environment: -5℃~45℃ (adapts to indoor temperature fluctuations, e.g., winter heated halls or summer air-conditioned venues) |
| Dimensions & Weight | Product Dimensions: 39×22×37cm (compact profile – fits indoor wall mounts, small trusses, or ground stands; no space waste in narrow bars); Weight: 5.5kg (1-person carry/installation – ideal for mobile event teams transporting gear in small cases); Packing Size: 45×45×31cm (protects the fixture during transport; a standard van holds ~30 units for bulk orders) |
