Outdoor 200W White Light Electric Zoom Cutting LED Imaging Light
- 2700K-12000K Ultra-Wide Color Temperature: Fully stepless adjustable from warm amber (2700K) to cool blue-white (12000K)—fits romantic outdoor weddings (warm light), modern building亮化 (cool light), or seasonal events (e.g., 5000K natural white for Christmas markets); one fixture replaces multiple fixed-color-temperature lights.
- DMX-Controlled Automatic Zoom & Cutting: Remote zoom (15°-30°) and arbitrary shape cutting via DMX console—no manual on-site operation (critical for high-altitude outdoor installations like building rooftops); cuts light into event logos or patterns, enhancing brand exposure for outdoor concerts.

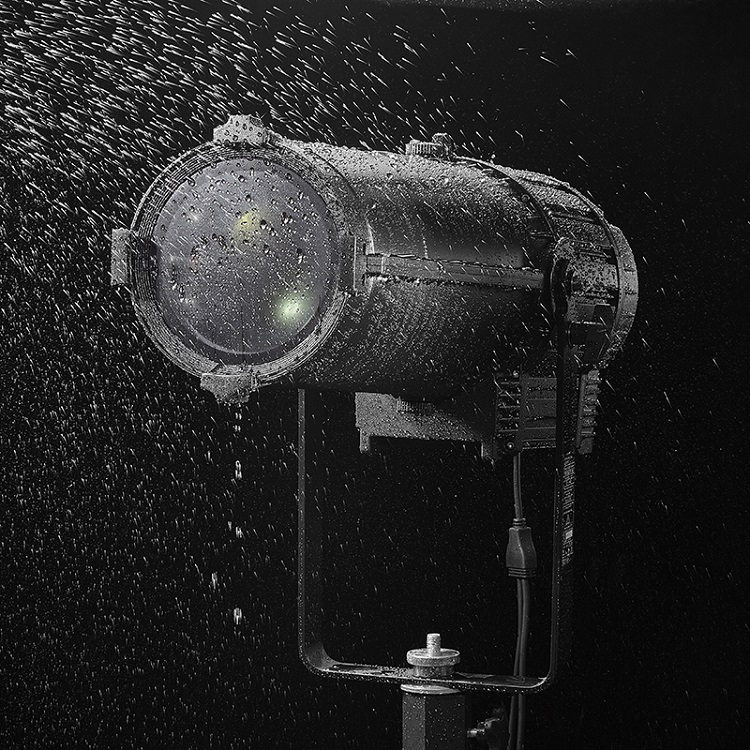

- IP65 Full Outdoor Durability: Die-cast aluminum housing + IP65 protection resists heavy rain, sand, and UV rays—no extra waterproof covers needed for open-air use (e.g., beach weddings, mountain festivals); corrosion-resistant structure ensures 3+ years of stable performance in outdoor environments.
- -30℃ Low-Temperature Resistance: Works normally in frigid winter outdoor events (e.g., ice sculpture exhibitions, New Year’s Eve outdoor shows)—no freezing of internal components or performance loss, solving “low-temperature shutdown” issues of ordinary outdoor lights.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Product
- Outdoor 200W White Light Electric Zoom Cutting LED Imaging Light
- SKU
- CT-FP-200-WZ
Description
Technical Specifications
| Parameter | Value & Professional Interpretation |
|---|---|
| Model No. | CT-FP-200-WZ |
| Input Voltage | AC 100-240V, 50/60Hz (Global wide voltage, compatible with outdoor event power systems worldwide) |
| Power Specification | LED Power: 200W (COB chip, high brightness concentration); Maximum Power: 260W (peak load during zoom/cutting, stable for long-term outdoor use) |
| Color & Color Temperature | LED Type: Warm White/Cool White COB LED (optional); Color Temperature Range: 2700K (warm amber, for romantic weddings) – 12000K (cool blue-white, for modern building lighting), fully stepless adjustable (adapts to diverse outdoor atmospheres) |
| Optical & Shaping Functions | Zoom: DMX automatic zoom (15°-30°, no manual on-site operation); Beam Angle: 15° (narrow focus for building columns/statues) – 30° (wide wash for facades/stages); Cutting Function: DMX-controlled shutter (cuts light into arbitrary shapes, e.g., logos, patterns, for event branding); Optical System: High-quality glass reflector + optical lens (reduces light loss, ensures uniform beam output) |
| Dimming & Effects | Dimming: 4 dimming curves (linear/LOG/etc.), 0%-100% smooth adjustment; Dimming Frequency: 500Hz-25000Hz (optional, flicker-free for HD live broadcast); Strobe: 1-25 times/second (dynamic flash for concert highlights); Color Management: HSIC system (maintains color temperature stability during dimming) |
| Control System | Protocol: RDM/DMX512 (RDM supports remote device status monitoring); Modes: DMX (professional console control), Auto (pre-set programs), Master-Slave (multi-lamp sync); DMX Channels: 5CH (covers dimming, zoom, cutting, strobe, color temp); Display: LCD touch screen (anti-glare, visible in outdoor sunlight) |
| Outdoor Durability | IP Protection: IP65 (full waterproof & dustproof, resists heavy rain/sand); Housing: Die-cast aluminum (corrosion-resistant to outdoor humidity/UV); Operating Temperature: -30℃~40℃ (works in cold winter outdoor events, no freezing shutdown) |
| Cooling & Safety | Cooling System: Noiseless fan + copper tube (fan noise ≤ 30dB, no disturbance to outdoor audiences); Thermal Protection: Thermal sensor monitoring (auto-shutdown when overheated, avoids LED damage) |
| Weight & Packaging | Net Weight: 16.69kgs (sturdy for outdoor installation); Gross Weight: 20kgs (shock-proof foam packaging for transport protection) |
| Applicable Scenarios | Outdoor concerts, garden weddings, building facade highlighting, open-air theaters, large-scale outdoor event stage lighting |
