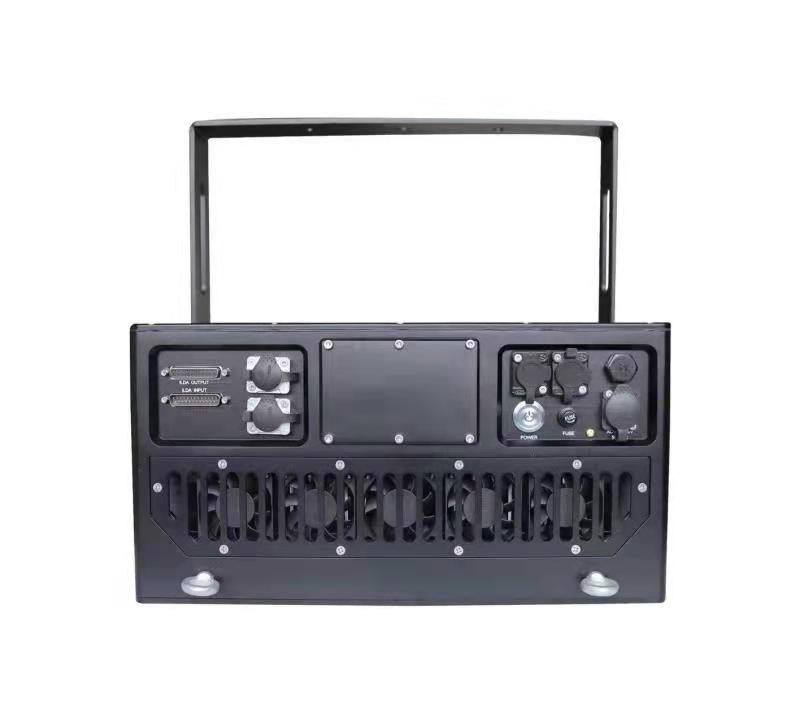

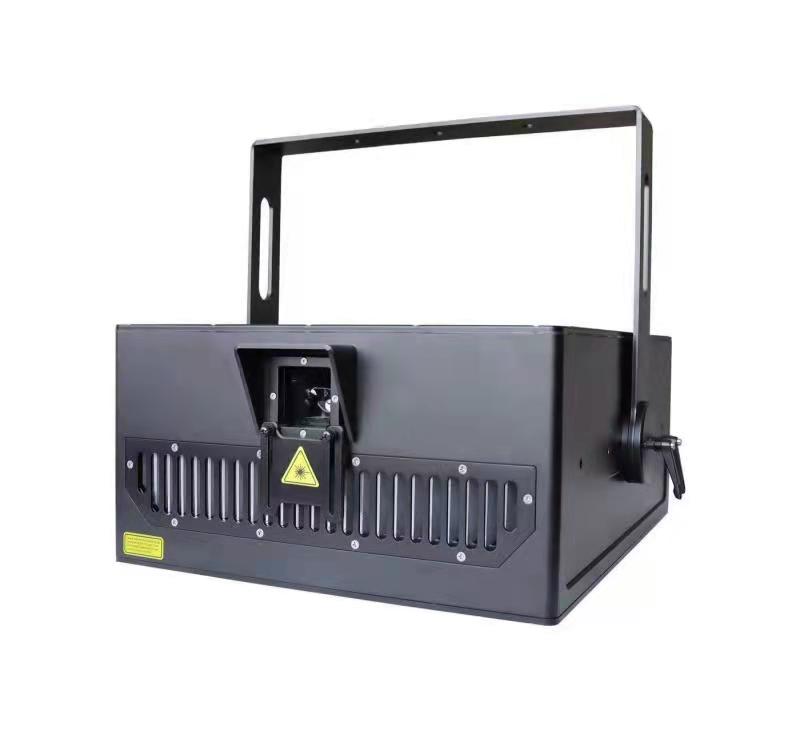

Outdoor waterproof 40w full color animation laser light
- 40W Nichia RGB for Mega-Outdoor Brightness: 8W red + 10W green + 12W blue deliver industry-leading brightness—covers 500-2000㎡ spaces (e.g., 50,000-seat stadiums, large city squares) without dimness; 12W blue (daylight-resistant) ensures effects stand out even in direct sunlight, solving the “washed-out” problem of lower-power outdoor lasers.
- IP65 Fully Waterproof & Dustproof Design: Certified to withstand rain, snow, dust, and water jets—no need for additional protective enclosures; ideal for permanent installations (e.g., skyscraper亮化) or temporary mega-events (e.g., international music festivals); double-layer optical sealing prevents moisture/dust damage to Nichia diodes, extending service life to 15,000+ hours.
- <1.0mrad Ultra-Narrow Divergence for Long-Distance Sharpness: Minimizes beam dispersion, enabling sharp projections at 500-1000m distance—perfect for urban landmark mapping (e.g., projecting animations onto a 100-story building) or stadium-wide visual effects (e.g., cross-field beam shows); no blurring or color distortion even at maximum range.
- FB4 + Pangolin QS for Professional Animations: Integrates FB4 control module for low-latency, precise control—works with Pangolin QuickShow to support 3D building mapping, real-time music sync, and large-scale animation editing; critical for mega-events like championship opening ceremonies or city anniversary shows, where custom, synchronized visuals are key.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Product
- Outdoor waterproof 40w full color animation laser light
- SKU
- CT-LL-40-WC3F4
Description
Technical Specifications
| Model No. | CT-LL-40-WC3F4 |
|---|---|
| Parameter | Value & Scene-Oriented Interpretation |
| Power Supply | Input Voltage: AC 110-240V, 50/60Hz (Global wide voltage, compatible with stadium generators, permanent venue grids, and international tour power systems—no converters needed) |
| Light Source (Core: 40W Nichia Graded RGB) | Brand: Nichia (imported Japan—low light decay, high stability for ultra-high-power outdoor use); Power Breakdown: – Red (R): 8000mW@638nm (8W, warm saturation for architectural details or brand logos); – Green (G): 10000mW@520nm (10W, highest visibility for long-distance beam shows/daylight use); – Blue (B): 12000mW@445nm (12W, piercing brightness for daylight festivals/stadium projections); Total Power: 40W (covers 500-2000㎡ spaces—4x brighter than 10W models, no dimness in mega-venues) |
| Beam & Projection Performance | Divergence Angle: <1.0mrad (ultra-narrow beam—minimizes dispersion, ensuring sharp text/animations at 500-1000m distance, e.g., projecting onto a 100-story skyscraper); Modulation Mode: 100k Analog/TTL (fast response for smooth color transitions—no “banding” in large-scale gradient effects like sunset simulations); Max Playback Angle (Scanning Angle): 60° (wide coverage—1 unit covers a 50m-wide stadium stage or 100m-long city square segment) |
| Control & Animation Capabilities | Control Options: ILDA standard (professional programming), Voice Control (audio-synced effects), Autonomous (pre-set loops), DMX512 (stage console sync), Master-Slave (multi-unit cohesion); Software Control: American Pangolin (QS—QuickShow, supports 3D mapping, real-time music sync, and large-scale animation editing); Laser Show Content: Supports text, pattern, animation, beam effects, LOGO, and customized designs (flexible for brand storytelling or artistic spectacles); Key Advantage: FB4 integration ensures low-latency control for complex multi-unit shows |
| Durability & Transport | Protection Level: IP65 (fully waterproof, dust-tight—resists rain, snow, dust, and water jets for year-round outdoor deployment); Optical Path Sealing: Unique double-layer structure (fully sealed to prevent moisture/dust intrusion—protects Nichia diodes from outdoor elements like rain or fog); Heat Dissipation Method: Air cooling (quiet operation—no audio interference with stadium concerts or theme park speeches); Working Temperature: -20~35℃ (stable in extreme climates—winter light festivals or summer outdoor shows); Dimensions & Weight: – Product: 56×42×23cm (sturdy for outdoor trussing/ground mounting); – Net Weight: 41KG (stable in windy conditions); – Air Box (Packaging): 60×66×40cm, Gross Weight 57KG (tour-friendly, shock-absorbing protection for multi-city transport) |
