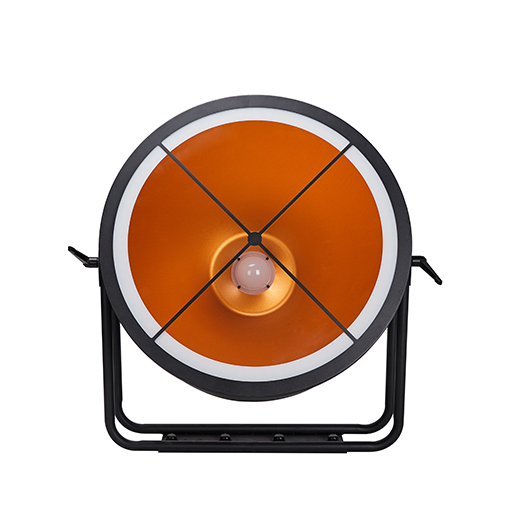

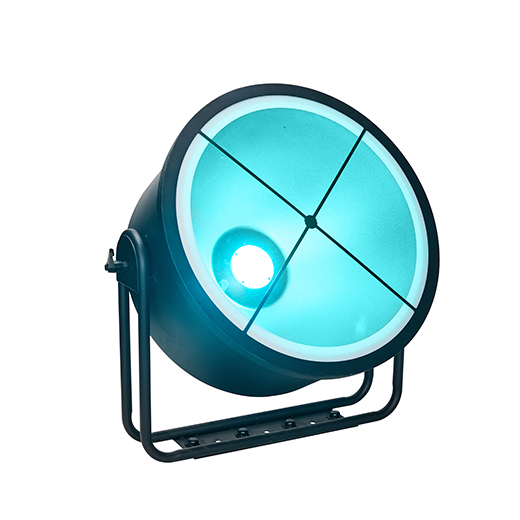

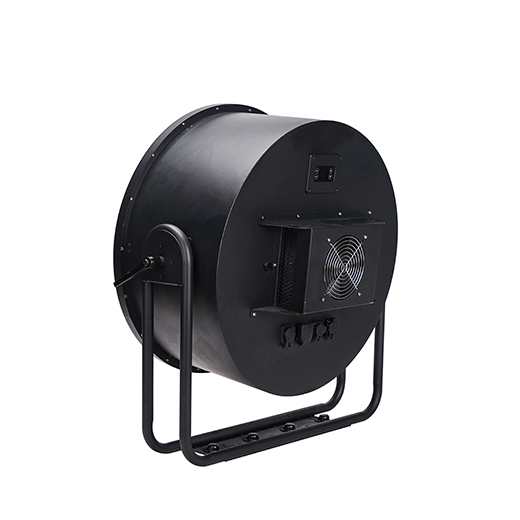

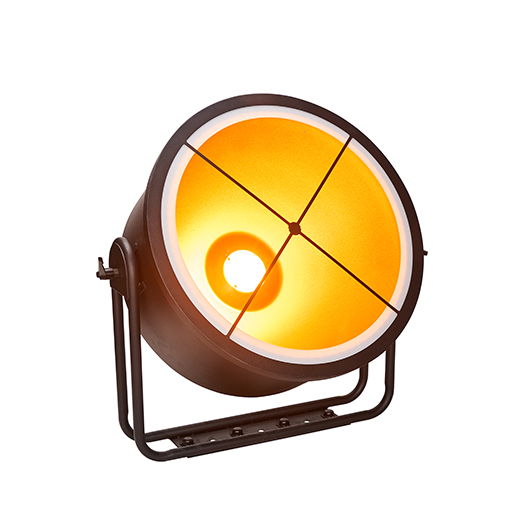

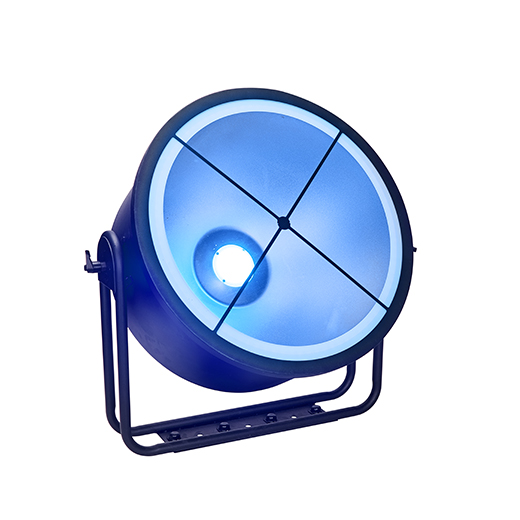

Outdoor waterproof 600w 6-in-1 LED backlight with auxiliary light + LED aperture
- 6-in-1 RGBLAC Main Light for Ultra-Rich Color Gamut: Red/Green/Blue/Lemon/Amber/Cyan 6-in-1 LEDs cover 1800~8500K color temperature (warm amber for wedding receptions, cool cyan for tech conferences) – wider color range than traditional RGBW, eliminating the need for color filters; single-color 90W output ensures intense brightness for 300~500㎡ per unit.
- Triple Light-Source Integration for Layered Visuals: Main light (55° focused beam for key areas like stage performers) + return light (36×3W RGB soft fill for shadow reduction) + auxiliary light (90×0.5W RGB ambient coloring for backdrops) – creates 3D layered lighting effects (e.g., performer spotlight + gradient backdrop + audience area mood light) that single-light-source fixtures can’t achieve.
- Intelligent Temperature Protection + Silent Cooling: Upgraded intelligent temp protection system monitors LED temperature in real time – shuts down non-critical functions if overheated, extending LED lifespan; aluminum alloy heat dissipation + silent fan (<35dB) balances cooling efficiency and noise control – no audio interference with live music, speeches, or theater performances.
- OLED Display + Durable Structural Design: OLED display provides clear operation in dark backstages (easy to switch DMX modes, adjust color temp); galvanized plate + aluminum alloy body resists rust and impact – suitable for outdoor long-term use (e.g., theme park permanent installations) or tour transport (withstands frequent loading/unloading).
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Product
- Outdoor waterproof 600w 6-in-1 LED backlight with auxiliary light + LED aperture
- SKU
- CT-ER-600-WAC6
Description
Technical Specifications
| Model No. | CT-ER-600-WAC6 |
|---|---|
| Parameter | Value & Scene-Oriented Interpretation |
| Power Supply & Consumption | Input Voltage: AC 100V~240V 50/60Hz (Global wide voltage, compatible with stadium generators, international tour power systems, and permanent venue grids—no converters needed); Rated Power: 600W (balanced for main/return/auxiliary lights + cooling/control systems—stable for 10+ hours of continuous use, e.g., all-night theme park shows or multi-set concerts) |
| Triple Light Source System | Main Light Source: RGBLAC (Red/Green/Blue/Lemon/Amber/Cyan) 6-in-1 LED, single color 90W – 55° focused beam (targets stage performers, stadium scoreboards); 6-in-1 color covers 1800~8500K (warm amber for weddings, cool cyan for tech events); Return Light: 36×3W RGB LED – Soft fill light (reduces shadows on performers’ faces during concerts); Auxiliary Light: 90×0.5W RGB LED – Wide ambient coloring (stage backdrops, audience area mood setting); Average Lifespan: 50,000 Hours – Reduces replacement costs for permanent installations (e.g., theme park fixtures) |
| Performance & Effects | Color Temperature: 1800~8500K (stepless adjustment – matches natural light for day events, warm tones for evening gigs); Fast Strobe: 1~25Hz (adjustable: 1-5Hz for subtle accents, 20-25Hz for concert peaks); LED Refresh Rate: 900~25KHz (flicker-free – safe for video recording/live streams, no frame distortion) |
| Control & Operation | Control Channels: 9 modes (1CH/3CH/6CH/10CH/12CH/13CH/15CH/21CH/37CH) – Adapts to complexity: – 1CH (basic on/off) for venue staff; – 37CH (advanced: single-light-source dimming/color tuning) for pro crews; Protocol: Standard DMX512, RDM (bidirectional communication – remote monitoring of temp/power); Data Connection: Three-core XLR input/output (supports daisy-chaining 5-8 units for large rigs); Display: OLED display operation panel – Clear interface in dark backstages; supports software update via DMX signal (no on-site wiring for upgrades) |
| Durability & Cooling | Lamp Body Structure: Galvanized plate + aluminum alloy (anti-rust, impact-resistant – suitable for outdoor long-term use); Heat Dissipation: Aluminum alloy heat dissipation + silent fan (low noise <35dB – no audio interference with live music); Protection Level: IP65 (fully waterproof/dust-tight – resists heavy rain, snow, dust); Working Environment: -40℃ ~ 45℃ (adapts to cold winters/summer heat); Start-up Environment: -20℃ ~ 45℃ (no freezing in low temps) |
| Dimensions & Weight | Product Dimensions: 632×652×325mm (stable base for ground/wall mounting); Net Weight: 13.4kg (excluding accessories, 2-person installation); Packing Size: 60.5×35.5×57.5cm, Box Weight: 15.3kg (protective packaging for tour transport) |
