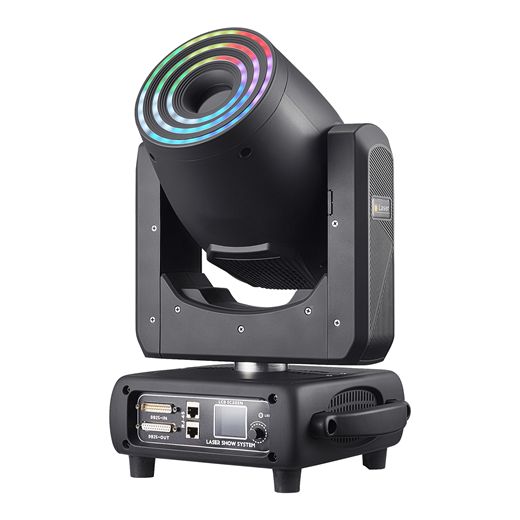

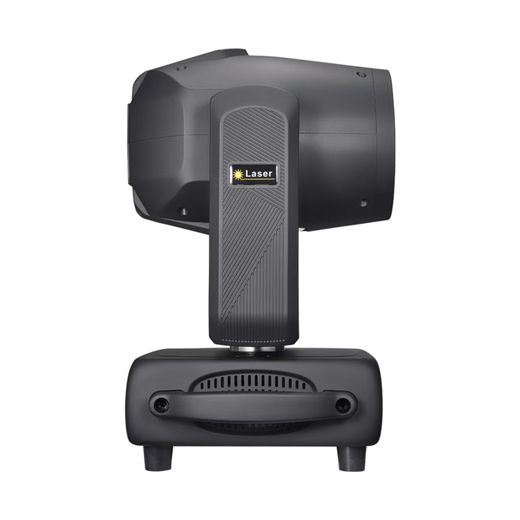

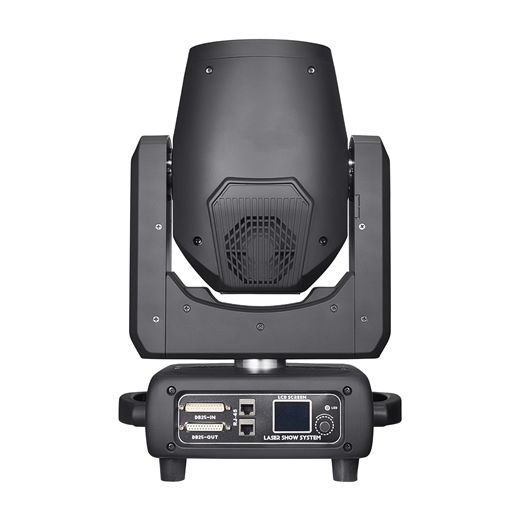

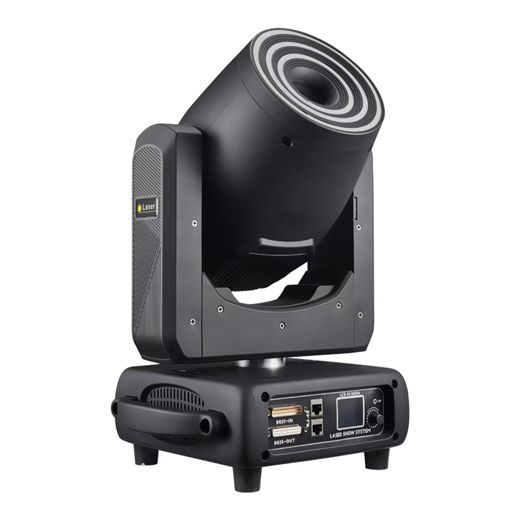

3D светодиодная диафрагма 5W RGB подвижная голова анимации лазерный свет
- High-Speed Galvo Scanner (30kpps) for Smooth Patterns: 30kpps scanning speed ensures laser patterns (strobe, rotation, splitting) move without lag—synchronizes perfectly with fast-paced nightclub music or concert beats; delivers high-definition patterns that stay sharp even at 10m distance.
- Multi-Professional Control Options for All Users:
– DJs/bar staff: Use voice control or self-propelled mode for quick mood changes;
– Lighting engineers: Use DMX512/Art-Net for multi-light sync, or ILDA interface with Pangolin/Fire Phoenix software for custom patterns (e.g., brand logos for promotions);
Снижение порога срабатывания при сохранении профессиональной гибкости. - Safety Protections for Venue Compliance: Scanning system error protection (shuts down laser if movement malfunctions) + laser light shutoff protection (prevents overheating)—meets global entertainment venue safety standards; avoids risks of equipment damage or audience discomfort.
- Fan Forced Cooling for Long-Term Reliability: Forced cooling maintains stable temperature during 8+ hours of continuous nightclub use—prevents laser power attenuation or LED burnout; ensures consistent performance for weekend peak hours or multi-day concerts.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Продукт
- 3D светодиодная диафрагма 5W RGB подвижная голова анимации лазерный свет
- SKU
- CT-LM-5-C3A
Описание
Technical Specifications
| Модель №. | CT-LM-5-C3A |
|---|---|
| Параметр | Интерпретация, ориентированная на ценности и сцены |
| Входное напряжение | AC 100-240V, 50/60Hz (Global wide voltage, compatible with nightclub/stage power grids and temporary event generators worldwide) |
| Источник энергии и света | Rated Power: 300W (balanced for long-term venue use—sufficient for laser + LED operation without overheating); Laser System: RGB Full-Color Laser (Total 5W) – – R1W/638nm (bright red for bold patterns); – G1W/525nm (vibrant green for natural tones); – B3W/447nm (high-brightness blue for vivid contrasts); LED Dye Configuration: Three-layer Micro-Jazz Light Strip (adds soft ambient fill light to complement laser patterns, avoiding harsh laser-only lighting) |
| Motion & Scanning Performance | Scanning System: Galvo Scanner (30kpps, high speed for smooth pattern transitions—ideal for fast-paced nightclub music); Scan Angle: ±20° (optimized for laser pattern coverage—covers 10-15㎡ per light at 5m distance); Stepper Motor: Two two-phase 57mm motors – – Horizontal: 540° (wide pan for cross-stage coverage); – Vertical: 270° (flexible tilt for floor-to-ceiling lighting); Key Advantage: Dual motion systems (galvo + pan/tilt) ensure laser patterns move across the entire venue, no blind spots |
| Контроль и эффекты | Control Methods: DMX512 (stage console sync), Voice Control (hands-free adjustment for DJs), Self-Propelled (pre-set programs), Computer ILDA Interface (custom patterns), Art-Net Network Cable (multi-light sync for large stages); Control Channels: 20CH (basic effects) / 25CH (advanced: laser + LED independent control); Special Effects: Single pattern mode with break, strobe, rotation, movement, tumbling, splitting, gradient drawing, color change, resizing – meets diverse venue moods (e.g., strobe for concert encores, gradient for lounge relaxation) |
| Safety & Durability | Safety Protections: Scanning system error protection + laser light shutoff protection (complies with entertainment venue safety standards, avoids overheating or malfunctions); Cooling System: Fan forced cooling (maintains stable temperature during 8+ hours of nightclub use, extending laser/LED lifespan); Usage Environment: 0-35℃ ambient temperature, dry/dust-free (reduces laser power attenuation—critical for long-term nightclub installation) |
| Размеры и вес | Bare Lamp Size: 31×25×47cm (compact for stage truss mounting—fits standard entertainment venue truss spacing); Net Weight: 9.3kg (stable for high-altitude mounting, no risk of shaking during pan/tilt movement); Packing Size: 50×34×35cm, Gross Weight: 10.5kg (protective packaging for transport between event venues) |
| Applicable Venues | Nightclubs, discos, bars, live concerts, advertising promotions, product launch events, lounge entertainment spaces |
