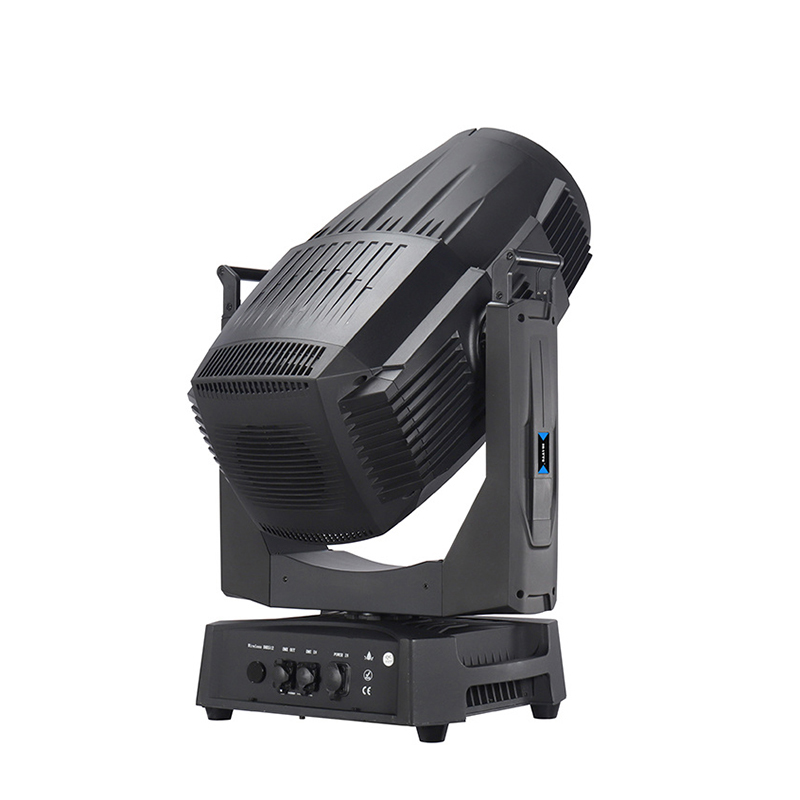

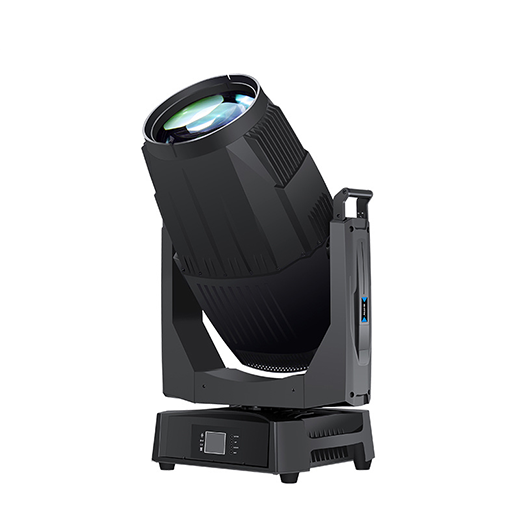

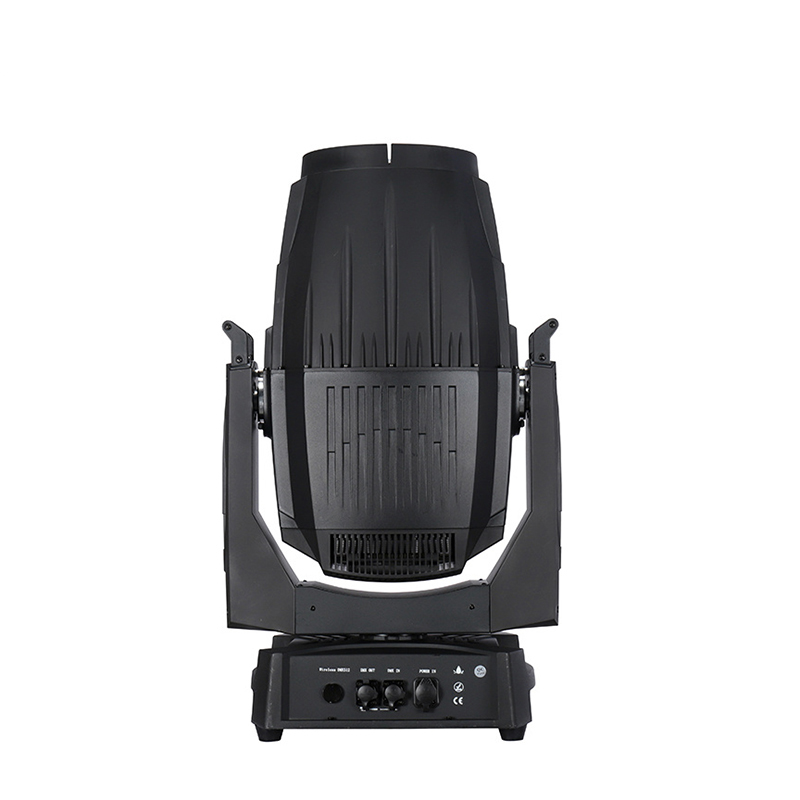

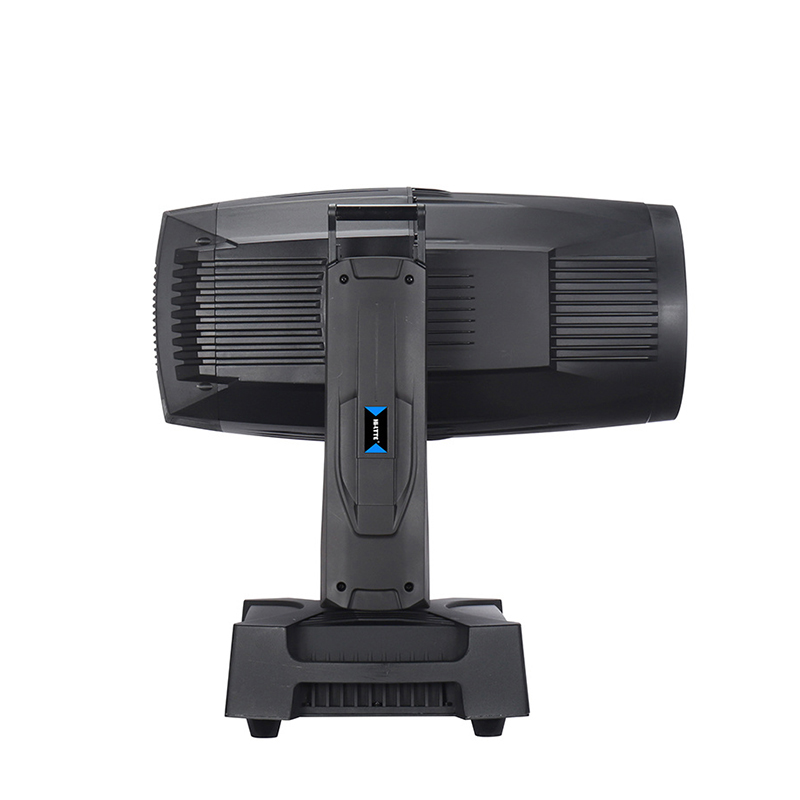

Đèn chiếu sáng ngoài trời chống nước, công suất 300W, tia laser trắng, đầu đèn di động.
- 260W High-Power Laser + 20,000-Hour Lifespan: High-brightness laser module covers 500-2000㎡ spaces—0-0.8° narrow beam ensures long-distance projection (100m+ stadium scoreboards) without dispersion; 20,000-hour lifespan reduces replacement costs for permanent installations (e.g., theme parks, landmarks), lowering long-term maintenance.
- IP65 Full Waterproofing for All-Weather Use: Certified to withstand rain, snow, dust, and water jets—no need for protective enclosures in outdoor events (e.g., rainy summer festivals, snowy winter light displays); ideal for year-round deployment, eliminating weather-related show cancellations or equipment damage.
- Rich Integrated Effects for Dynamic Visuals: Combines 15 patterns (customizable via open positions), 12 colors (half-color gradients), and dual prisms (8/16-prism superimposition)—creates layered effects like “prism beam arrays” or “color-gradient patterns” that replace 3-4 single-function lights; reduces rigging load and setup time for large events.
- Ultra-Quiet 16-Bit Stepper Motors: 2 three-phase stepper motors for horizontal/vertical movement (16-bit control) ensure smooth, jitter-free rotation; 13 total ultra-quiet motors operate at <35dB—no audio interference with live music, stadium announcements, or theme park ride narration, critical for immersive event experiences.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- Sản phẩm
- Đèn chiếu sáng ngoài trời chống nước, công suất 300W, tia laser trắng, đầu đèn di động.
- SKU
- CT-MB-300Y-LS
Mô tả
Thông số kỹ thuật
| Số model | CT-MB-300Y-LS |
|---|---|
| Tham số | Giải thích dựa trên giá trị và bối cảnh |
| Nguồn điện | Input Voltage: 100-240V AC, 50/60Hz (Global wide voltage, compatible with stadium generators, international tour power systems, and permanent venue grids—no converters needed); Rated Power: 347W (balanced for 260W laser output + 13 motor/effect systems—stable for 8+ hours of continuous outdoor use, e.g., all-night festivals) |
| Nguồn sáng & Hiệu suất quang học | Light Source: 260W laser module (high brightness for 500-2000㎡ spaces; ~20,000-hour lifespan reduces replacement costs for permanent installations); Color Temperature: 7800K (cool white base, pairs with color wheel for warm/cool tone versatility—ideal for brand-themed lighting); Beam Angle: 0-0.8° (narrow, concentrated beam—perfect for long-distance projections, e.g., 100m+ stadium scoreboards or skyscraper logos); Optical Lens: High-precision glued optical lens (minimizes light loss, ensures sharp patterns/colors even at maximum projection distance) |
| Effect Systems | Pattern Wheel: 15 fixed patterns + 4 open positions (diverse textures for stage backdrops or audience area projections; open positions support custom gobos); Color Wheel: 12 colors + Open color (supports half-color effect for gradient transitions—matches event themes, e.g., pastels for weddings, neons for clubs); Prism: Rotating 8-prism + 16-prism (forward/backward rotation, superimposable for multi-layer beam arrays—creates dynamic “beam waterfalls” for festival main stages); Soft Light Effect: Adjustable soft light point angle (adapts to intimate or grand scenes, e.g., softening beams for outdoor theater) |
| Control & Motor Performance | Control Modes: DMX512, RDM (RDM enables remote device monitoring—saves time for large rig checks); DMX Channels: 16CH (comprehensive control over all effects: dimming, strobe, pattern/color selection); Control Method: LED LCD touch screen + button control (intuitive on-site adjustments, no console needed); Motors: 13 ultra-quiet motors (2 three-phase stepper motors for horizontal/vertical movement, 16-bit control—smooth, jitter-free rotation; ultra-quiet operation avoids audio interference) |
| Độ bền & Kích thước | Protection Level: IP65 (fully waterproof, dust-tight—resists rain, snow, and dust for outdoor use); Dimming/Strobe: 0-100% linear dimming (smooth transitions), 1-25Hz high-speed strobe (pulse, synchronous/asynchronous modes—high-energy accents); Weight: 37kg (stable in windy conditions, manageable for professional rigging crews); Dimensions: 326×473×705mm (compact for high-power, fits standard outdoor trusses); Extended Functions: Optional wireless signal control (reduces cable clutter for large outdoor rigs) |
