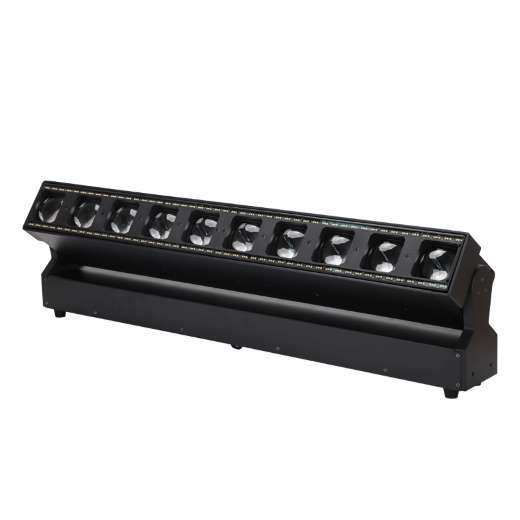

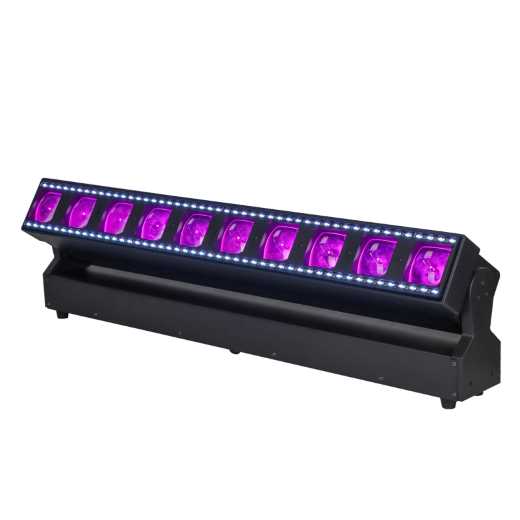

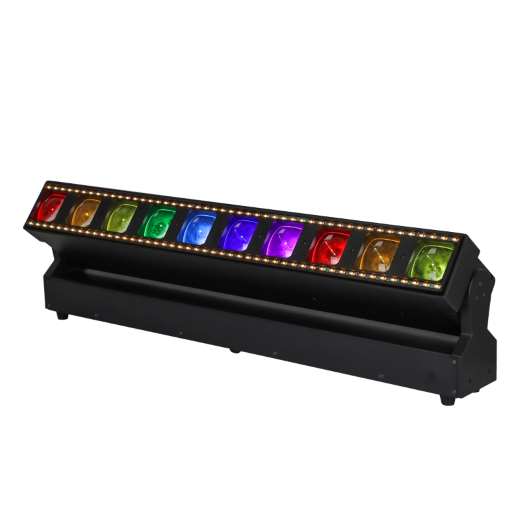

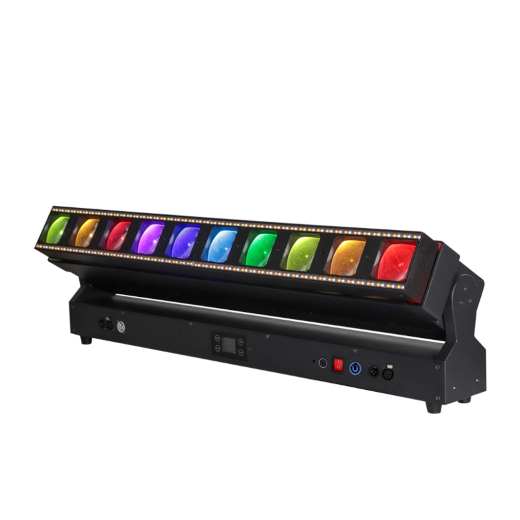

10x60w 單點控制光束染料聚焦 LED 條狀移動頭燈 LED 背光
- 4-in-1 Multi-Light Synergy: 10×60W RGBW (core) + 96×1.5W CW/WW (warm-cool white) + 96×0.5W RGB (ambient) – creates layered, rich lighting for bars, concerts, and stage events.
- Wide 5°-46° Linear Zoom: Linear scaling system enables seamless switching between narrow, sharp beams (for long-throw highlights) and wide wash (for large-area coloring) – adapts to diverse indoor spaces.
- Flexible Channel Control: 8 optional DMX channel modes (17-170CH, including 8+100/8+160CH) – supports simple basic control (17CH) or precise multi-source customization (170CH) for complex setups.
- Professional Color Mixing: High-quality RGBW blending + CW/WW warm-cool adjustment – delivers uniform, vivid colors with no color break, ideal for atmosphere creation (weddings, parties).
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- 10x60w 單點控制光束染料聚焦 LED 條狀移動頭燈 LED 背光
- SKU
- CT-MW-1060-PXZBL
描述
技術規格
| 型號 | CT-MW-1060-PXZBL |
|---|---|
| 參數 | Value |
| 輸入電壓 | 100-240V~ 50/60Hz |
| Total Power | 600W |
| Multi-LED Light Source | Main: 10×60W RGBW LEDs (core beam/wash); Auxiliary 1: 96×1.5W CW (Cool White) LEDs; Auxiliary 2: 96×1.5W WW (Warm White) LEDs; Auxiliary 3: 96×0.5W RGB LEDs (ambient coloring) |
| Zoom Angle | 5°-46° (linear scaling system) |
| 調光與閃燈 | 0%-100% smooth dimming; Multiple speed strobe effects |
| Movement Angle | Y-axis: 202° (vertical coverage) |
| Control System | Control Protocol: DMX512; Channel Modes: 17CH / 27CH / 99CH / 108CH / 168CH / 8+100CH / 8+160CH / 170CH |

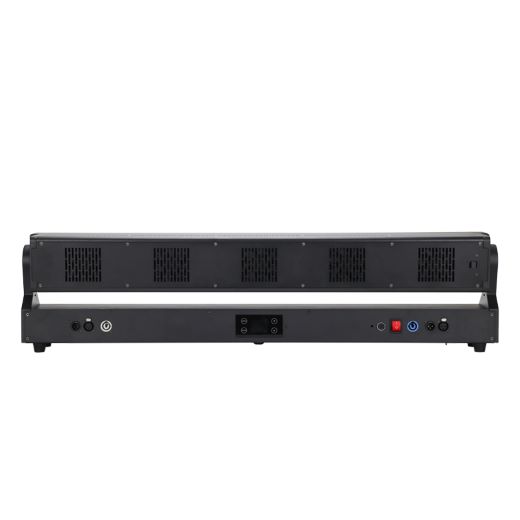

| Connections | Signal: 3-pin / 5-pin XLR input/output; Power: Power Connector input/output |
| Protection Level | IP20 (indoor use) |
| Dimensions (L×W×H) | 1000×120×290mm |
| Net Weight | 23kg |
| Core Advantages | Linear scaling system; Full, sharp beam; Excellent color mixing effect |
