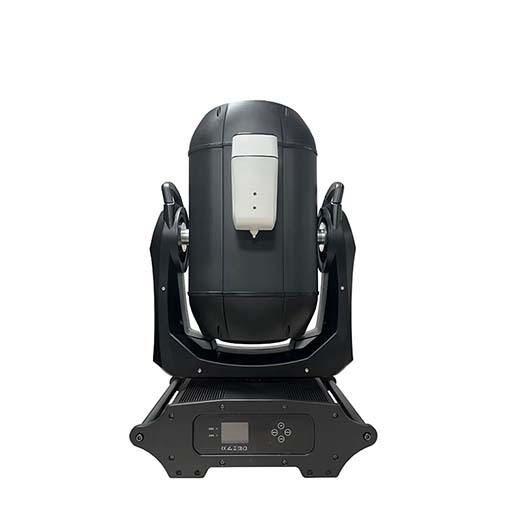

700W LED 摇头追蹤聚光燈 + 控制系統
- 700W Module LED + 120-200m Long Range for Super-Large Venues: 700W high-power LED delivers 91,000lm flux, cutting through stadium ambient light (floodlights, screen light) to track performers clearly at 200m—solves the “blurry long-distance” problem of low-power follow spots. 5-30° stepless beam angle adapts to 120m small groups (e.g., dance ensembles) and 200m solo performers (e.g., concert singers).
- 540°/210° Precision Rotation + Three-Phase Motors for Dynamic Tracking: Customized three-phase motors enable 15°/second fast rotation with no lag—tracks performers running across 200m stadium stages or jumping on open-air festival platforms. Horizontal 540° rotation covers 360°+ viewing angles, while vertical 210° adapts to high/low stage positions (e.g., stadium stage risers).

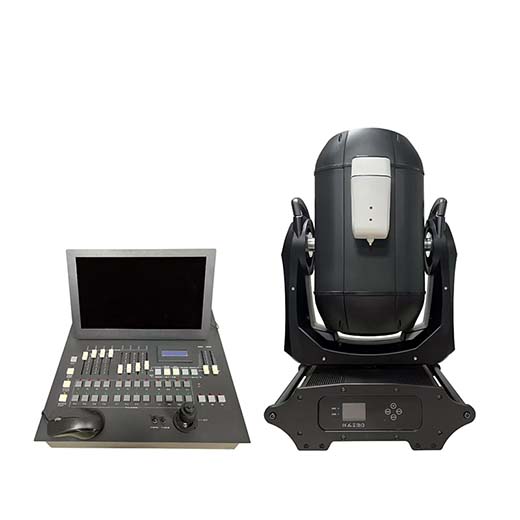

- Integrated 10-Inch Console + 240-Channel Control for Simplified Workflows: No need for separate control devices—the console integrates 20x zoom camera (real-time performer monitoring), 128K memory (480 scenes), and joystick control:
– Operators adjust focus/dimming/strobe via the LCD screen, no on-site visual checks;
– Stores pre-programmed scenes (e.g., “award ceremony mode,” “concert solo mode”) for one-click activation;
– Controls up to 4 computer lights, reducing the number of on-site devices by 50%. - All-Weather Heating/Cooling + Intelligent Reset for Reliability: Linear heating/cooling films ensure operation in -10℃~45℃—works in winter stadium frost or summer open-air heat; photoelectric reset system automatically recovers from motor misoperation (e.g., accidental collision) in 3 seconds, avoiding event delays from manual recalibration.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- 700W LED 摇头追蹤聚光燈 + 控制系統
- SKU
- CT-FS-700
描述
技術規格
| 型號 | CT-FS-700 |
|---|---|
| 參數 | 價值與場景導向詮釋 |
| Power Supply & Energy Management | Input Voltage: 100V-240V, 50Hz-60Hz (Global wide voltage, compatible with stadium generators and cross-region large events—no converters needed for international tours); Total Power: 880W (Includes 700W module LED source + 180W control/motor/thermal management system); Thermal Management: Linear heating film + linear cooling film (Adapts to extreme outdoor temperatures: heating film thaws frost at -10℃, cooling film dissipates heat at 45℃—ensures stable operation in all seasons). |
| 光源與光學效能 | Light 700W Module LED – High luminous efficiency (130lm/W) delivers 91,000lm total flux; 120-200m effective range covers 200m-wide stadium stages; Color & Color Temperature: 5 colors (Red/Yellow/Blue/Green/Rose Red) + White light (2 color disks) + 4 color temps (3200K warm ~6500K cool) + atomization effect – Adapts to diverse scenarios: – 3200K + atomization for warm evening galas; – 6500K for daytime stadium events; – Rose Red for festival atmosphere lighting; Beam Angle: 5-30° Stepless adjustment – Narrow 5° for 200m long-distance solo tracking, wide 30° for 120m small-group coverage. |
| Mechanical Control & Intelligence | Rotation Range: Horizontal 540° + Vertical 210° (Customized three-phase motors – Fast response: 15°/second rotation speed, no lag when tracking running performers); Focus & Dimming: Stepless linear electronic focus (sharp edges at 200m) + 0-100% linear dimming (smooth transitions for scene changes); Strobe & Aperture: Electronically adjustable strobe frequency + aperture size (automatic size function reduces operator workload); Intelligent Reset: Photoelectric reset correction system – Automatically returns to original position after misoperation (avoids manual recalibration mid-event, saving 5-10 minutes of downtime). |
| Integrated Control Console | DMX Channels: 16 DMX512 channels (Lamp) + 240 total channels (Console) – Controls up to 4 sets of computer lights (16 channels each); Camera & Monitoring: 20x zoom 5-megapixel camera + real-time picture monitoring – Operators track performers via the console screen, no need for on-site visual confirmation; Operation Interface: 10-inch LCD display + joystick (up/down/left/right shaking + fixed point) – Joystick speed adjustable; XY axis direction reversible; 128K memory card stores 480 scenes (12 program fields × 40 steps); DMX Interface: 3-core XLR input/output (Standard international DMX512 protocol, compatible with mainstream consoles like MA3). |
| Dimensions & Packaging | Lamp Dimensions: 650×580×980mm (L×W×H, lamp head vertical); Weight: Net 38.5kg (Lamp) + Console weight included in system; Airline Packaging: 530×430×320mm, 23kg (Console packaging—lightweight for air transport during international tours); Gross Weight: 42.5kg (Lamp + essential accessories—2-3 person installation, compatible with stadium truss or ground stands). |
