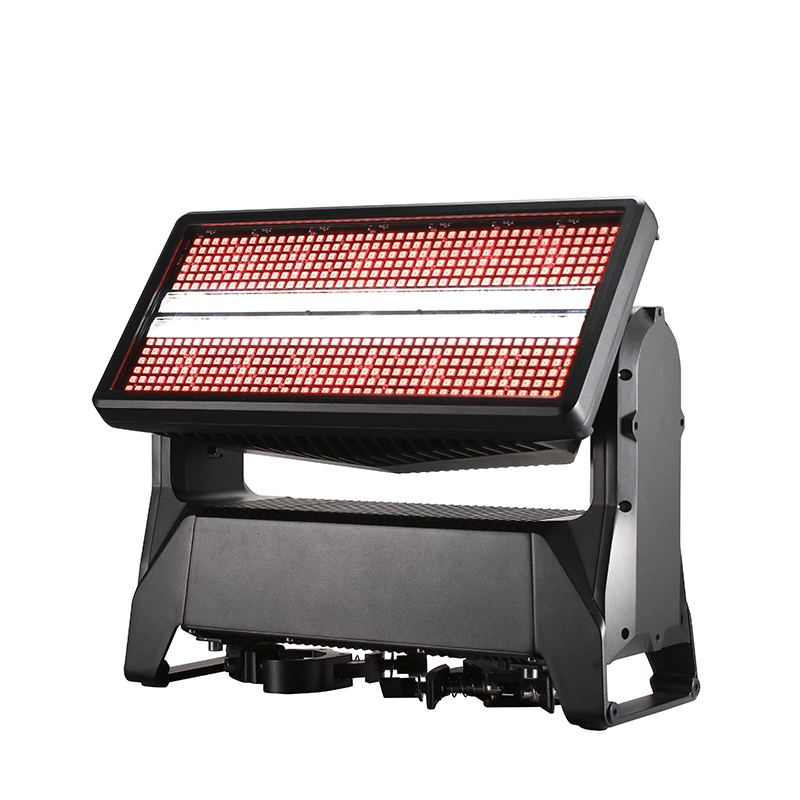

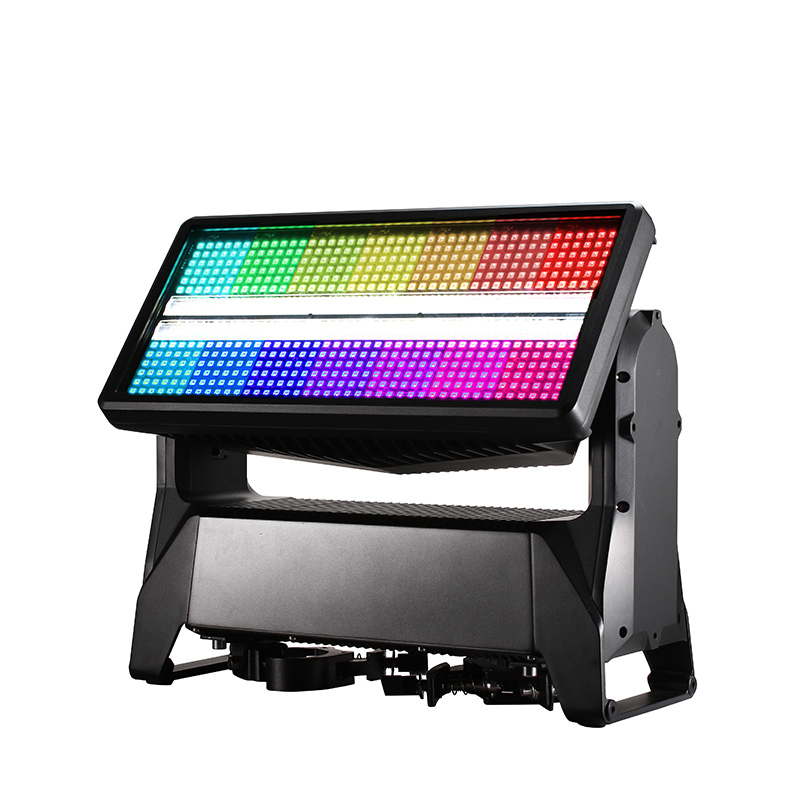

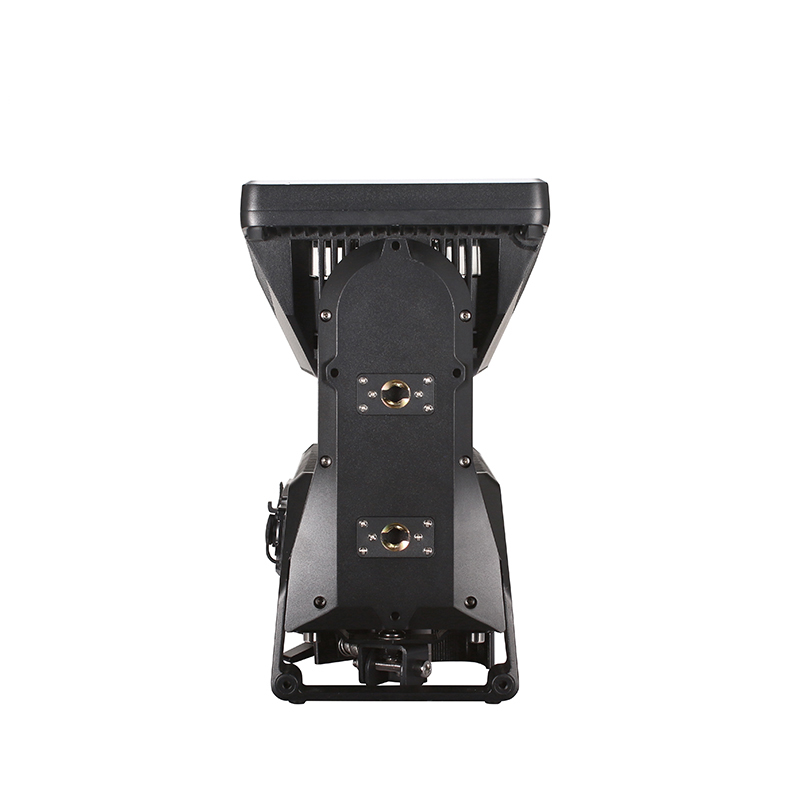

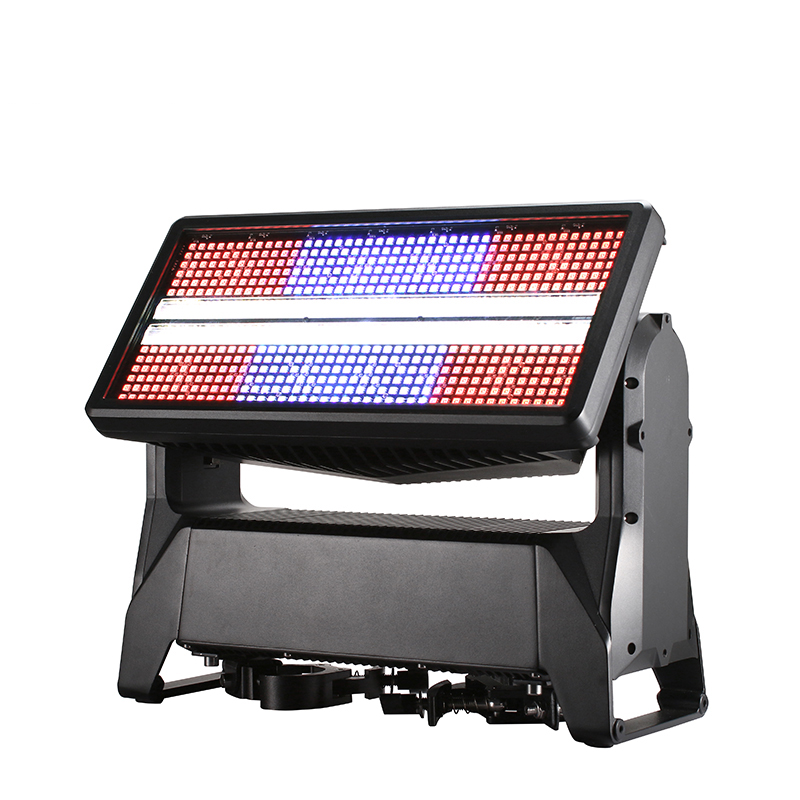

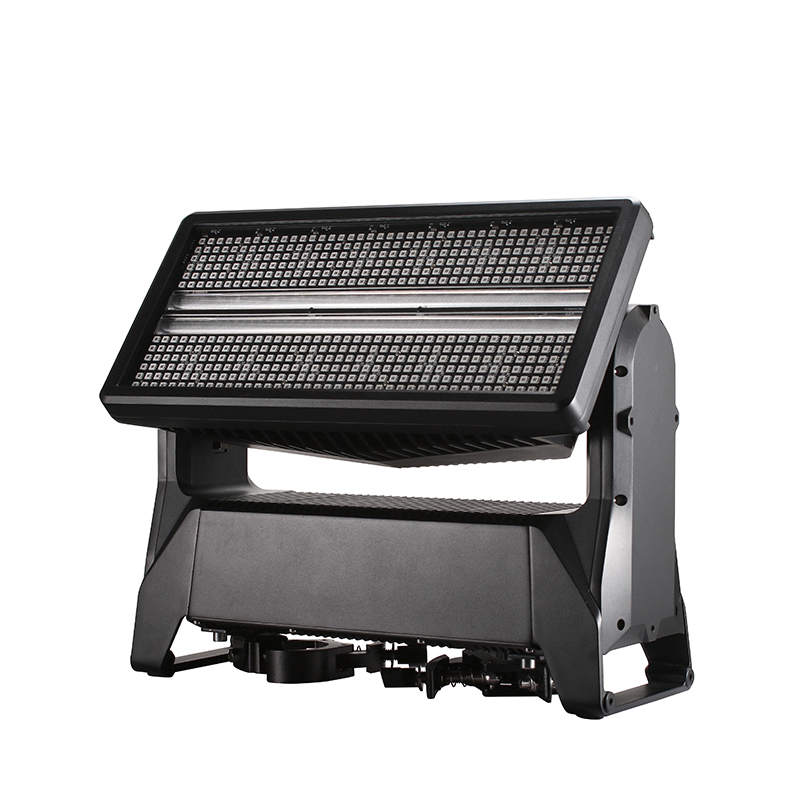

Artnet 戶外防水 1800 瓦搖頭 LED 閃光燈
- Dual-LED Arrays for All-Scenario Lighting: 504 RGB LEDs (ambiance creation) + 280 cool white LEDs (bright wash) in one fixture—replaces 2-3 single-function lights (color wash, white wash, strobe); ideal for dynamic events: RGB gradients for concert intros, cool white fill for artist close-ups, or combined effects for festival peaks, reducing rigging time and costs.
- IP65 Waterproof Connections for Semi-Outdoor Use: Seetronic IP65 XLR and PowerCON connections resist rain, dust, and humidity—safe for covered festivals, open-air theaters, or humid indoor venues (e.g., poolside concerts); no need for protective enclosures, ensuring reliable operation in harsh event environments.
- Temperature-Controlled Cooling + Overheat Protection: 1800W high-power operation requires robust cooling—temperature-controlled fans adjust speed based on heat, while overheat protection prevents shutdown during 12+ hour shows (e.g., multi-set concerts, theater marathons); ensures consistent performance from start to finish.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- Artnet 戶外防水 1800 瓦搖頭 LED 閃光燈
- SKU
- CT-ES-1800-WM
描述
技術規格
| 型號 | CT-ES-1800-WM |
|---|---|
| 參數 | Value & Pro-Scene Interpretation |
| 電源供應及消耗 | Input Voltage: 100-240V AC, 50-60Hz (Global wide voltage, compatible with stadium generators, theater grids, and international tour power systems—no converters needed); Wattage: 1800W (allocated for dual LED arrays + cooling system—stable for 12+ hours of continuous use (e.g., multi-set concerts) without overheating) |
| Dual-LED Core (RGB + Cool White) | RGB LED Array: 504 pcs 1.5W RGB 3-in-1 LEDs – High color saturation for gradient ambiance, color jumping, and theme-specific looks (e.g., neon for EDM concerts, warm pastels for musicals); Cool White LED Array: 280 pcs 5W 6500K LEDs – Ultra-bright wash light (32,000+ lumens) for stage fill, audience illumination, and high-visibility scene lighting (e.g., theater play dialog scenes); LED Segments: RGB (14 segments: 2×7) / Cool White (28 segments: 2×14) – Enables pixel-level control for dynamic effects (e.g., wave-like color transitions across the stage) |
| Control & Protocol (Pro-Grade) | Control Modes: 13 selectable DMX modes – 8ch (basic wash) → 97ch (pro pixel-level control); “C-series” modes (e.g., C 47ch, C 97ch) optimize for complex dual-LED synchronization; Protocols: USITT DMX-512, RDM (two-way communication for remote status monitoring), Art-Net, sACN (for large-rig synchronization, e.g., 100+ units in stadiums); Wireless DMX: Optional 2.4GHz W-DMX™ (eliminates cable clutter for flexible rigging, e.g., outdoor festival stages); Display: Illuminated graphic LCD touchscreen (intuitive for dark backstage environments, supports parameter preset storage) |
| Movement & Performance | Tilt Angle: 185° (wide vertical coverage—covers tall stages or audience balconies without blind spots); Resolution: 8-16 bit (smooth dimming/strobe transitions—no “stepped” effects, critical for theater scene changes); Dimming: 0-100% electronic dimming (silent, no mechanical noise); Shutter: Electronic (max. 20Hz strobe—high-energy accents for concert peaks); Built-in Effects: LED macro effects (pre-programmed color transitions, chase effects) save programming time for event crews |
| Durability & Installation | Cooling: Temperature-controlled fan + overheat protection (prevents shutdown during 12+ hour shows); Connections: Seetronic IP65 XLR (3/5-pin) I/O, Seetronic PowerCON TRUE1 input (waterproof connections for semi-outdoor use); Suspension: Omega bracket (side-mount on support arms, compatible with standard stage trusses); Safety: Folding eyelet clip (optional safety line connection for high-altitude mounting); Dimensions & Weight: 482×178×243mm (head level), Net Weight 13.0kg, Gross Weight 16.0kg (flight case: 56×43×25cm, tour-ready) |
