戶外 400W RGBAL 五合一電動變焦切割 LED 輪廓燈
- RGBAL 5-in-1 Full Color + Ultra-Wide CCT: Combines RGB dynamic colors, cool white, and amber—amber restores natural skin tones for outdoor concert performers; RGB creates gradient/wave effects for building亮化; 2700K-12000K adapts to day (cool light) and night (warm light) scenes—one fixture replaces 5 single-color outdoor lights.
- DMX Motorized Zoom & Arbitrary Cutting: Remote 15°-30° zoom and shape cutting via console—no climbing ladders for high-altitude adjustments (e.g., 8m stage trusses, 10m building walls); cuts light into event logos (e.g., music festival names) or scenic patterns (e.g., flower shapes), enhancing visual impact.

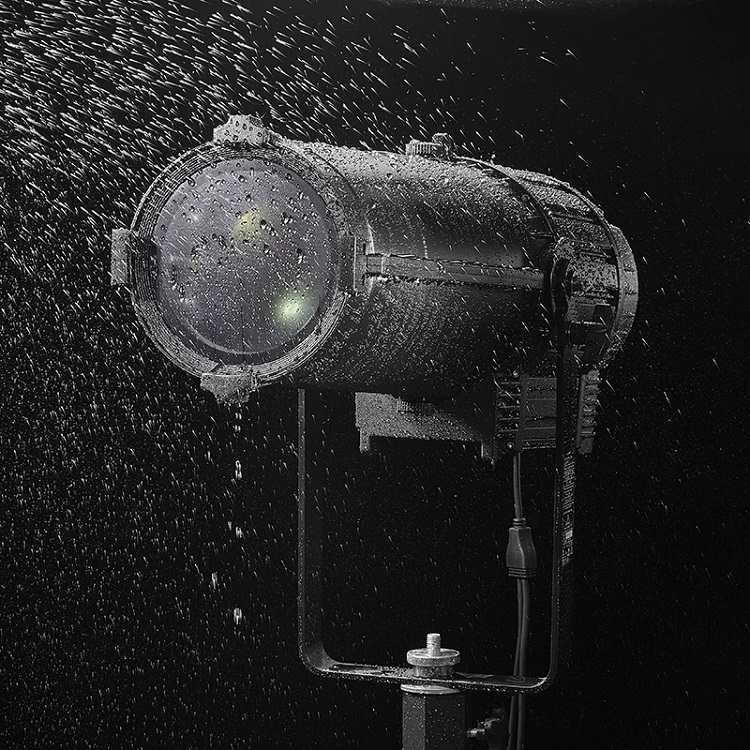

- IP65 Full Outdoor Durability: Thickened die-cast aluminum + IP65 protection resists heavy rain, salt spray (coastal weddings), and sand (desert events)—no extra waterproof covers needed; corrosion-resistant structure ensures 3+ years of stable use for fixed scenic spot lighting.
- -30℃ Low-Temperature Resistance: Special low-temperature components prevent freezing of internal circuits—works normally in winter outdoor events (e.g., New Year’s Eve square performances, ice sculpture exhibition lighting); solves “low-temperature shutdown” of ordinary outdoor LEDs.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- 戶外 400W RGBAL 五合一電動變焦切割 LED 輪廓燈
- SKU
- CT-FP-400-WZC5
描述
技術規格
| 參數 | Value & Professional Interpretation |
|---|---|
| 型號 | CT-FP-400-WZC5 |
| 輸入電壓 | AC 100-240V, 50/60Hz (Global wide voltage, compatible with outdoor event power systems in different countries) |
| Power Specification | LED Power: 400W (RGBAL 5-in-1 COB chip, high brightness concentration, covers 100-150㎡ per light); Maximum Power Consumption: 520W (peak load during zoom/cutting, stable for 10+ hours of continuous outdoor use) |
| Color & Color Temperature | LED Type: RGBAL 5-in-1 (Red/Green/Blue/Amber/Cool White) COB LED—adds amber to restore natural skin tones (critical for outdoor concerts); Color Temperature Range: 2700K (warm amber, romantic weddings) – 12000K (cool blue-white, modern buildings), fully stepless adjustable |
| Optical & Shaping Functions | Zoom: DMX motorized zoom (15°-30°)—15° for long-distance spotlighting (e.g., 15m-tall building columns); 30° for wide-area washing (e.g., 20m-wide stage backdrops); Cutting Function: DMX-controlled shutter (cuts light into arbitrary shapes: logos, patterns, text) for event branding or scenic spot storytelling; Optical System: High-quality glass reflector + optical lens (light utilization rate ≥92%, no dark spots or glare) |
| Dimming & Effects | Dimming: 4 dimming curves (linear/LOG/sine/exponential) + 0%-100% smooth adjustment (no flicker for HD live broadcast); Dimming Frequency: 500Hz-25000Hz (optional, meets broadcast-level standards); Strobe: 1-25 times/second (dynamic flash for concert climax or event countdown); Color Management: HSIC system (ensures consistent color/temperature across multiple lights) |
| Control System | Protocol: RDM/DMX512 (RDM supports remote monitoring of power/temperature, reducing on-site maintenance); Modes: DMX (professional console control, e.g., MA2/Avolites), Auto (pre-set color programs), Master-Slave (multi-lamp sync without console); DMX Channels: 5CH (basic control: dimming/zoom/color) / 22CH (professional control: single-color dimming/cutting shape/strobe speed); Display: LCD touch screen (anti-glare, visible in strong outdoor sunlight) |
| Outdoor Durability | IP Protection: IP65 (full waterproof & dustproof—resists heavy rain (100mm/h), sand, and salt spray (coastal events)); Housing: Die-cast aluminum (1.5mm thick, anti-deformation + corrosion-resistant to UV rays); Working Temperature: -30℃~40℃ (works in winter ski resort events or summer desert festivals) |
| Cooling & Safety | Cooling System: Noiseless fan (noise ≤28dB) + copper tube heat dissipation—no disturbance to outdoor audio or audience dialogues; Thermal Protection: Thermal sensor monitoring (auto-shutdown when overheated, protecting LED chips) |
| 重量與包裝 | Net Weight: 16.69kgs (sturdy for truss mounting); Gross Weight: 20kgs (shock-proof EPE foam + carton, protects against transport vibration) |
| 適用情境 | Outdoor music festivals, large-scale building dynamic facade lighting, super-sized garden weddings, open-air theaters, scenic spot night lighting |
