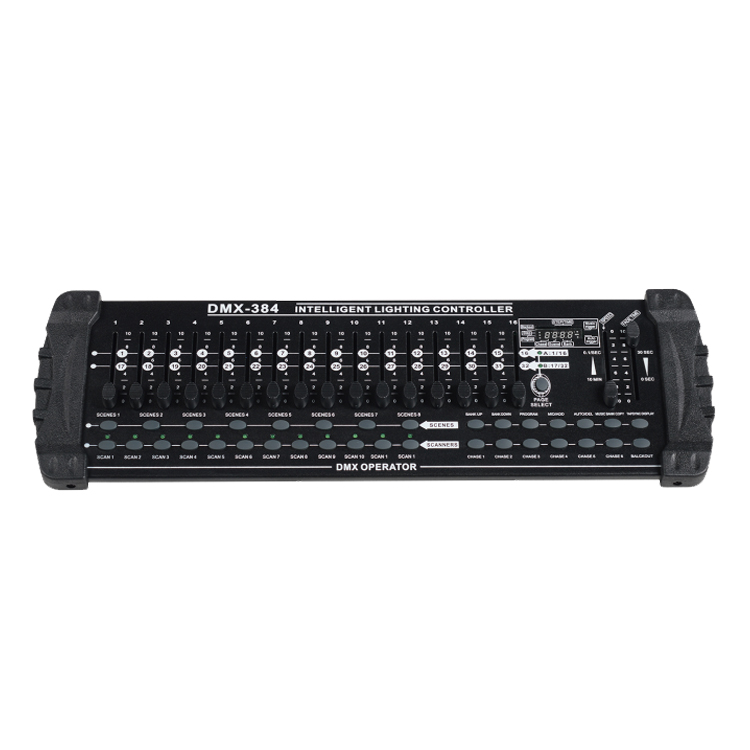

384CH DMX512 照明控制器
- 384 Channels + 24 Computer Light Control: Medium-Large Stage Ready
– 384 DMX channels drive 24×16-channel lamps—covers setups like 500-seat theaters or concert stages without multiple controllers;
– Reduces wiring complexity: Centralizes control for 24 fixtures, saving setup time and avoiding cable tangles in multi-zone venues. - MIDI Remote + Sound Trigger: Flexible Control Modes
– MIDI interface remotely controls CHASES, BLACKOUT—integrates with audio/visual systems for synchronized stage control (e.g., musicals, live TV);
– Built-in MIC sound trigger: Syncs lighting with music beats for EDM concerts, dance parties, or school talent shows without extra audio cables. - Power-on Recall + BLACKOUT: Uninterrupted & Safe
– Re-powers on to last Chase/Bank—avoids reconfiguring programs after power outages, critical for live performances;
– Manual/MIDI BLACKOUT: Instantly cuts lights for dramatic effects or emergencies (e.g., stage accidents), enhancing event safety and flexibility. - Fade Delay + Standard XLR: Smooth & Easy Setup
– FADE TIME potentiometer adjusts transition delay—creates smooth lighting changes for theater plays or corporate presentations;
– XLR-D3F standard connector: Plug-and-play with existing DMX cables, no adapters needed—reduces setup time for mobile DJs or event teams.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 产品
- 384CH DMX512 照明控制器
- SKU
- CT-CC-384
技术规格
| 型号 | CT-CC-384 |
|---|---|
| 参数 | 以价值和场景为导向的诠释 |
| Power & Compliance | Input Voltage: AC100-240V 50/60Hz (DC9V 1000mA power input) (Dual-voltage design—compatible with global power grids (US 110V, EU/Asia 220V); DC power input ensures stable operation for long-duration events like wedding receptions or theater plays);
DMX Standard: DMX512/1990 signal output (Compliant with industry classic standard—works seamlessly with most DMX fixtures (16-channel moving heads, LED par lights) and ensures reliable signal transmission). |
| Control Capacity & Storage | Control Channels: 384 DMX channels (Can control 24×16-channel DMX lamps—ideal for medium-to-large setups like 300-500 seat theaters, concert stages, or hotel ballrooms);
Scene Storage: 30 BANKs, 8 programmable SCENES per BANK (Total 240 scenes—stores abundant preset looks for events with multiple segments, e.g., wedding “ceremony,” “dinner,” “dance”); Positioners: 16 adjustable positioners (Precisely adjust output size for each channel—customizes brightness or effect intensity for individual fixtures). |
| Trigger & Control | Trigger Modes: Built-in MIC head (sound trigger) + automatic trigger (TAP SYNC button/SPEED potentiometer) (Sound trigger syncs lighting with music for concerts; TAP SYNC sets rhythm for dance performances);
MIDI Control: MIDI interface supports remote control of CHASES programming/running, BLACKOUT function (Enables integration with audio mixers or stage control systems—simplifies complex multi-device operations in live broadcasts or musicals); Power-on Recall: Re-powers on to run the last Chase or Bank (Avoids reselecting programs after accidental power off—critical for uninterrupted events like award ceremonies). |
| Output & Function | Output Connector: XLR-D3F LED bulb interface (Standard DMX connector—compatible with common DMX cables, no adapter needed for quick setup);
BLACKOUT Function: Manual or MIDI remote control (Instantly cuts off light output for dramatic scene transitions or emergencies); Output Delay: FADE TIME potentiometer adjusts delay time (Smooths lighting transitions between scenes—avoids abrupt changes in mood for theater plays or corporate galas). |
