5 件 60 瓦 4 合 1 点控、聚焦、染色和频闪双头条形 LED 摇头灯

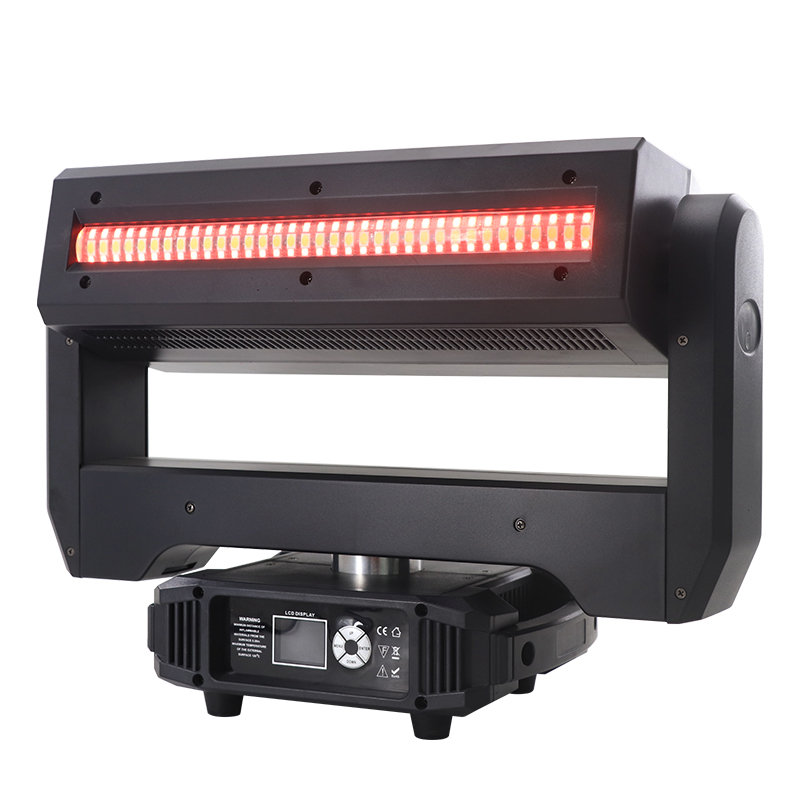

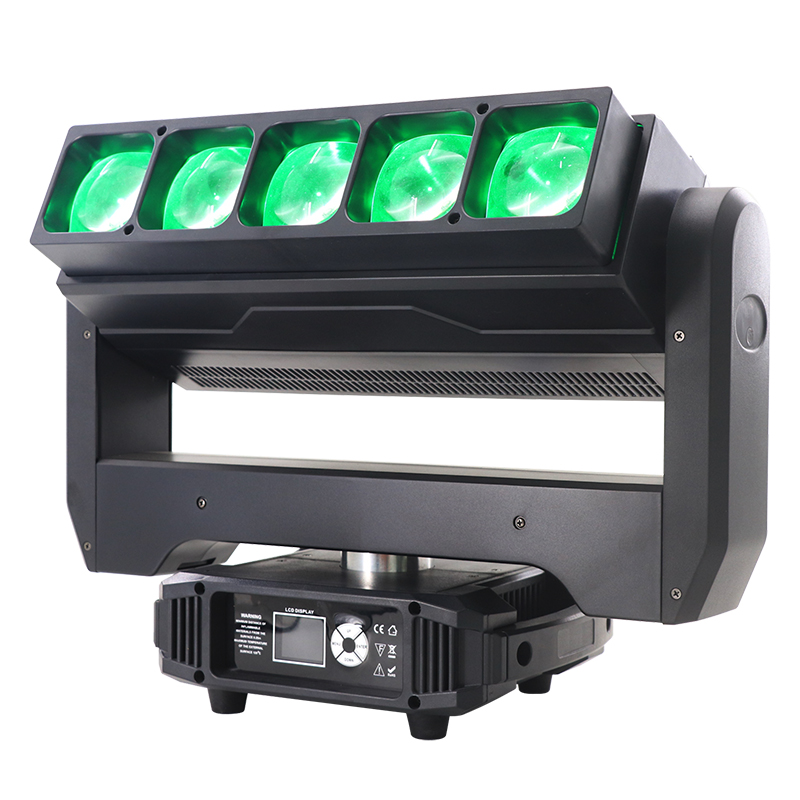

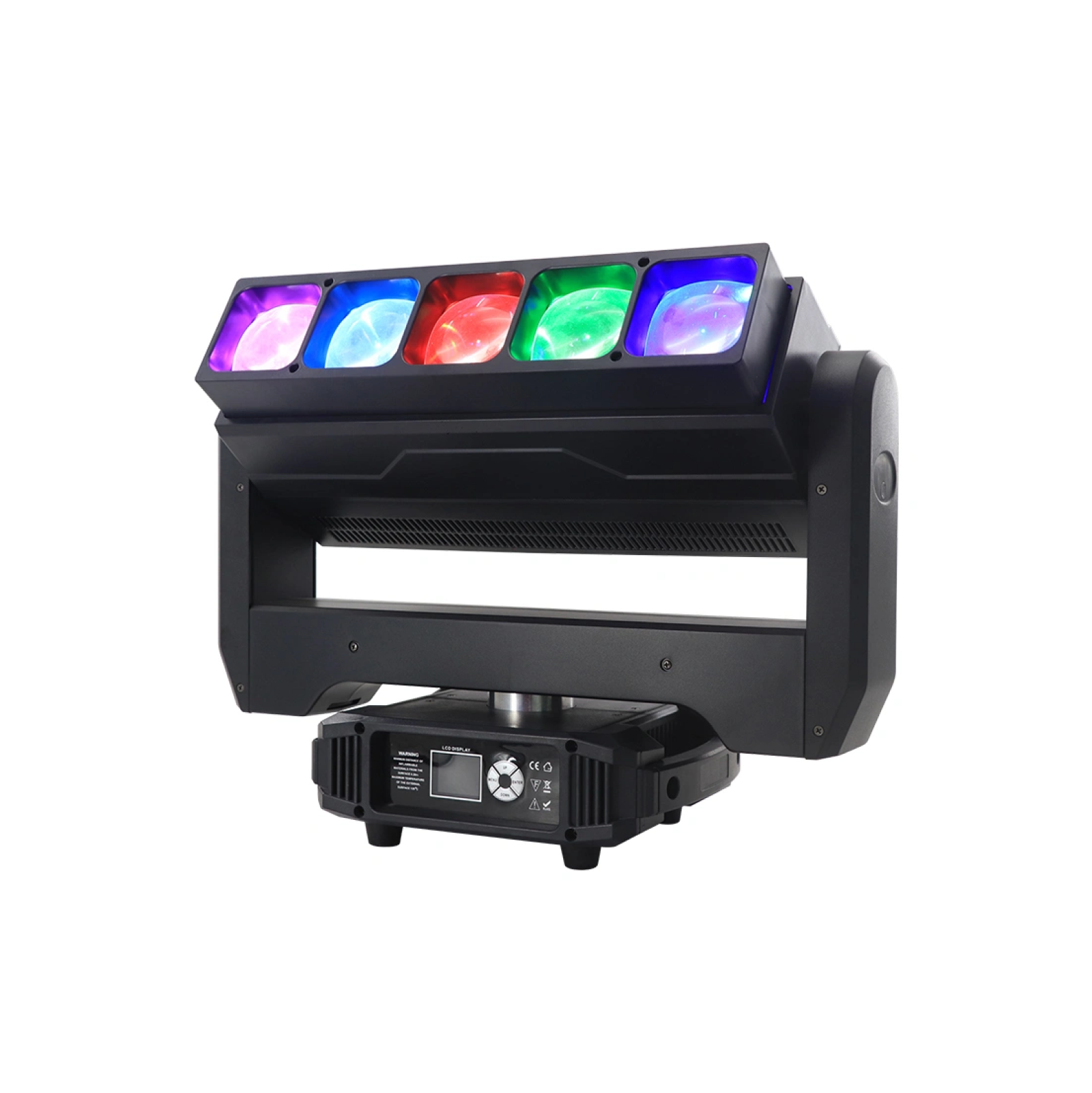

- Dual-Head Pixel Control: Front 5×60W RGBW LEDs (individual pixel control) + back 14-segment pixel LEDs (9 LEDs/segment) – creates layered, dynamic light effects for bars, small concerts, and events.
- Infinite 360° Pan/Tilt: Unlimited rotation enables full-area lighting coverage without angle restrictions – perfect for wrapping around stages or illuminating circular venues.
- Multi-Effect Integration: Combines beam, wash, and electronic strobe (up to 20Hz variable speed) – one fixture replaces multiple devices, saving installation space and cost.
- Flexible DMX Control: 26CH (basic) / 68CH (advanced) options – fits simple setups (small bars) or complex customization (stage shows) via DMX512.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 产品
- 5 件 60 瓦 4 合 1 点控、聚焦、染色和频闪双头条形 LED 摇头灯
- SKU
- CT-EM-560-C4PXZIDH
描述
技术规格
| 型号 | CT-EM-560-C4PXZIDH |
|---|---|
| 参数 | 价值 |
| Product Type | Infinite 5-Piece 60W 4-in-1 Point Control Dye Focus + Strobe Dual-Head Strip LED Moving Head Light |
| 输入电压 | 100-240V, 50/60Hz |
| Total Power | 450W |
| Dual LED Light Source | Front: 5×60W RGBW 4-in-1 LEDs (individual pixel control); Back: 35×3W white LEDs + 70×0.3W RGB 3-in-1 LEDs (14-segment pixel control, 9 LEDs per segment) |
| LED 使用寿命 | 20,000 hours |
| 光学性能 | Zoom Range: 4°-36°; Effects: Beam, wash, strobe (multiple modes); Strobe: Electronic strobe (variable speed up to 20Hz); Dimming: High-resolution 0-100% electronic dimming |
| 控制系统 | DMX512 Channels: 26CH / 68CH; Pan/Tilt Movement: 360° unlimited rotation (infinite pan/tilt) |

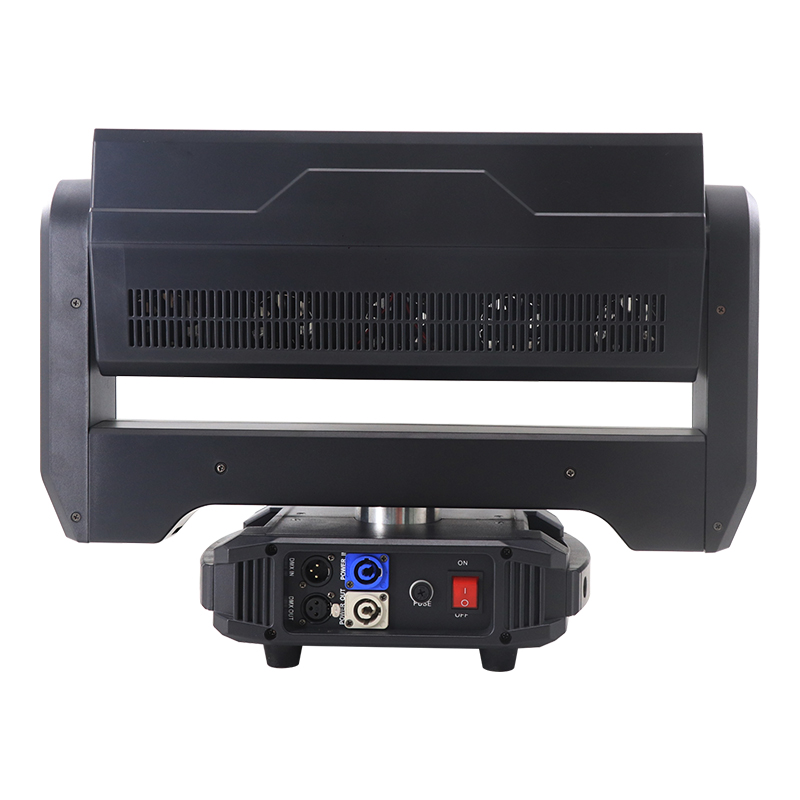

| Connections | Power: Powercon Input/Output; DMX Signal: 3-pin XLR Input/Output |
| 重量 | Net weight: 14kg; Gross weight: 15kg |
