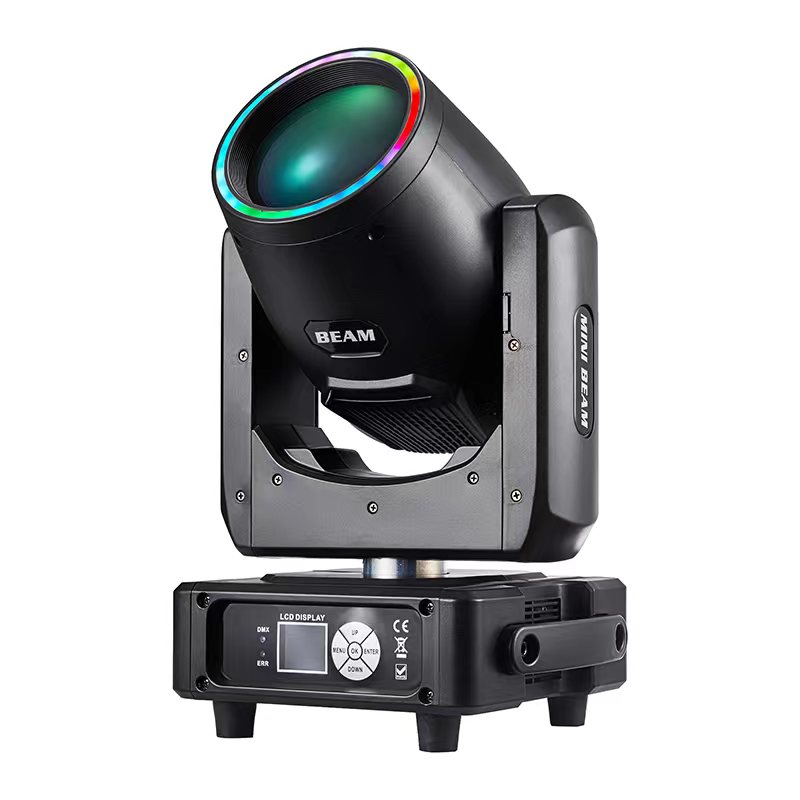

带 LED 环形的小型 230w 光束 230 摇头灯
- ⭐ 230W Beam with LED Ring delivers powerful brightness and vivid colors
- ⭐ 230 Moving Head with 14 gobos and prism effects for dynamic stage shows
- ⭐ 230W Beam with Ring supports 540° pan & 270° tilt for smooth movement
- ⭐ Independent strobe, dimmer, and frost channels for versatile effects
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 产品
- 带 LED 环形的小型 230w 光束 230 摇头灯
- SKU
- CT-MB-230-MAP
描述
技术规格
| 型号 | CT-MB-230-MAP |
|---|---|
| 输入电压 | 100-240Vac, 50/60Hz |
| Bulb | Custom 230W bulb |
| Auxiliary Light | 27 × 0.5W RGB 3-in-1 LEDs |
| Control | On/off or manual |
| Ballast | Electronic ballast (380V input) |
| Main Color Wheel | 13 colors + white, rainbow effect, 14 linear color blends |
| 图案轮 | 14 fixed patterns + white |
| Pattern Effects | Flowing pattern effect, oscillating pattern effect, pattern positioning at any angle, clockwise/counterclockwise rotation |
| 频闪 | Independent strobe channel, 1-10 times/second, built-in macro function |
| 调光器 | Independent dimming channel, 0-100 linear precision dimming |
| 雾化 | Independent linear atomization |
| Special Effects | 8+16+24 (optional 8+16) prism effects, magnification Prism and arbitrary angle positioning, rotation, Prism pattern combinations with built-in programming and precise motorized focus |
| X/Y-axis Movement | 540° on the X axis, 270° on the Y axis, with automatic error correction on the X/Y axes. Independent X/Y-axis speed adjustment and rotation fine-tuning. |
| X/Y-axis Resolution | 8/16 bit |
| Control and Programming | 18 standard DMX512 channels. Built-in microphone for voice control. |
| 尺寸 | 50 × 34.5 × 36.5cm |
| Gross Weight | 12kg |
