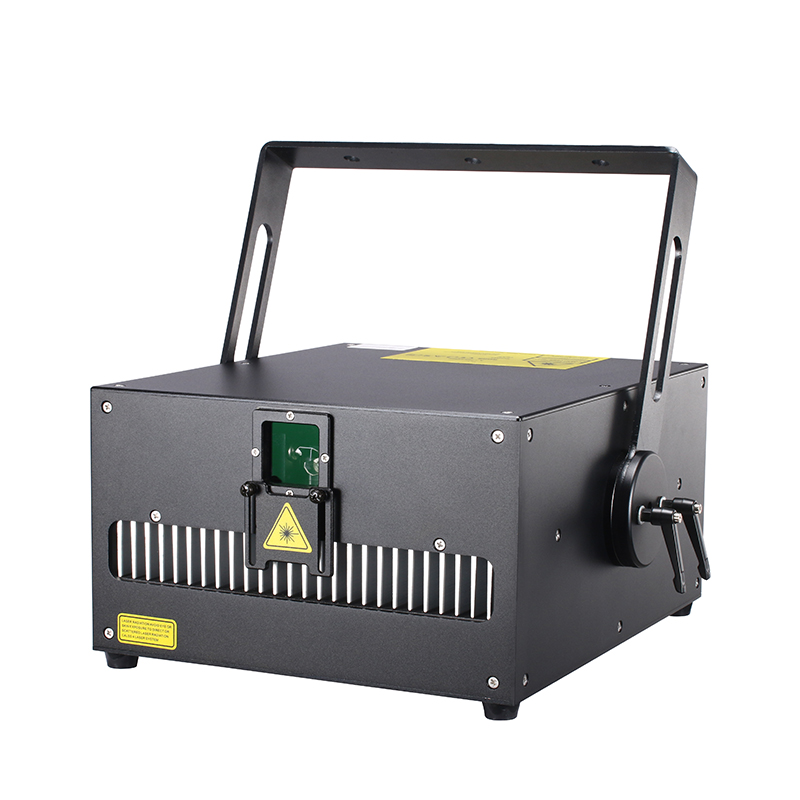

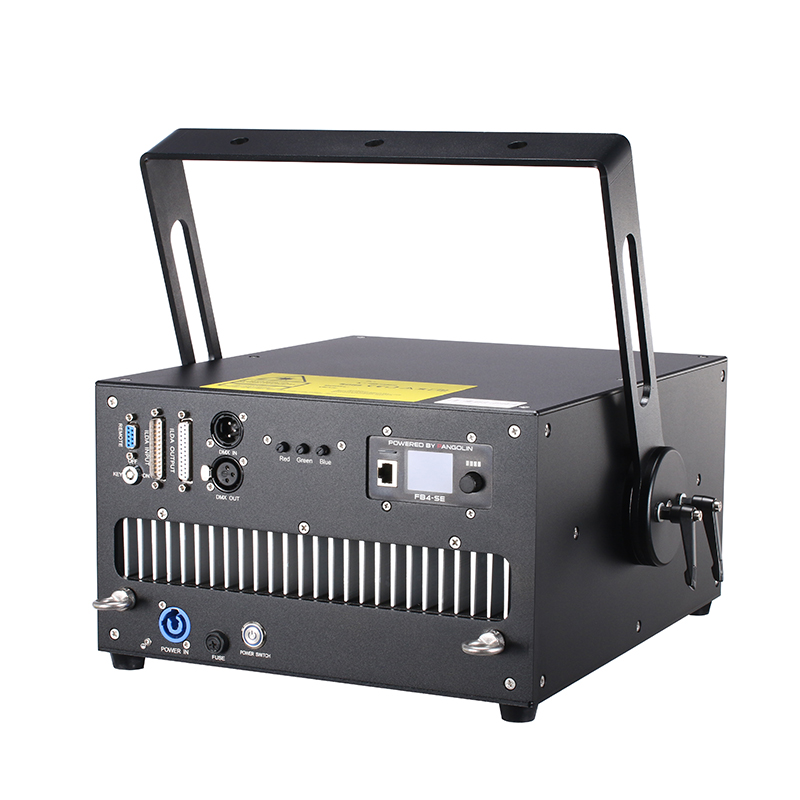

15W RGB 動畫雷射燈條 FB4
- Japan Nichia High-Power RGB Diodes for Vivid Colors: 3W red + 4W green + 5W blue Nichia diodes deliver industry-leading color saturation and brightness—ensures animations (e.g., concert artist logos, brand text) stay clear and vivid even in large, well-lit venues like stadiums or exhibition halls; low light decay extends professional service life to 10,000+ hours.
- Built-in FB4 Control Module (Professional Standard): FB4 (Pangolin-compatible) is the gold standard for professional laser shows—supports custom animation creation, real-time music sync, and integration with other stage effects (e.g., LED screens, fog machines); eliminates the need for external control boxes, simplifying setup for tour teams.
- 50K High-Speed Scanner for Smooth Animations: 50KHz scanning speed ensures fast-moving animations (dynamic beam flows, scrolling lyrics) are jitter-free—critical for high-quality laser storytelling that matches concert music tempo; 60° scanning angle covers large stage backdrops or audience areas without blind spots, reducing the number of fixtures needed.
- IP33 Semi-Outdoor Compatibility: Splash-proof and dust-resistant design expands use beyond fully indoor spaces—ideal for covered festival stages, open-air theaters with canopies, or semi-enclosed stadiums; protects internal components from accidental splashes or dust accumulation, reducing maintenance during outdoor-facing events.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- 15W RGB 動畫雷射燈條 FB4
- SKU
- CT-LL-15-C3F4
描述
技術規格
| 型號 | CT-LL-15-C3F4 |
|---|---|
| 參數 | 價值與場景導向詮釋 |
| 輸入電壓 | AC 100~240V, 50/60Hz (Global wide voltage, compatible with stadium power grids and international tour generators—no voltage converters needed) |
| Light Source (Core Advantage) | Brand: Japan Nichia (industry-leading diode brand—low light decay, stable output, ideal for frequent professional use); Power Breakdown: – R: 3000mW@638nm (high-saturation red for bold text/logos); – G: 4000mW@520nm (vibrant green for eye-catching animations); – B: 5000mW@445nm (high-brightness blue for vivid contrasts in large venues); Total Power: 15W (ensures animations remain clear even in bright, large spaces like 1000-seat theaters) |
| Scanning & Beam Performance | Scanner: 50K high-speed scanner (smooth motion for fast-moving animations—avoids jitter in text scrolling or dynamic beam shows); Beam Specification: ~6.5mm diameter / 1.3mrad divergence (narrow, focused beam for sharp projections at long distances—up to 50m); Scanning Angle: Maximum 60° (wide coverage for stage backdrops or audience area projections—eliminates blind spots in medium-large venues) |
| Control & Modulation | Control Modes: ILDA (professional software programming), Voice Control (hands-free adjustments for DJs), Auto-Propelled (pre-set programs), DMX512 (sync with stage lighting systems), Master-Slave (multi-light sync without console), SD Card (offline custom animations); Modulation Mode: 100k analog/TTL (fast response for sharp color transitions—critical for complex laser sequences); Laser Display: Supports text, animation, beam effects, logos, and custom designs (flexible for brand shows or artistic performances) |
| Durability & Protection | Protection Level: IP33 (splash-proof, dust-resistant—suitable for semi-outdoor use like covered festival stages; not for heavy rain); Optical Path Sealing: Unique double-layer structure (optical path fully sealed—prevents dust/moisture intrusion, extending diode lifespan); Working Temperature: -20~35℃ (works in cool indoor theaters or semi-outdoor spring/autumn events—no performance loss) |
| Dimensions & Packaging | Product Size: 37×31×35cm (sturdy design for truss mounting—fits standard professional stage rigging); Net Weight: 20kg (stable for high-altitude installation, no shaking during scanning); Packaging (Flight Box): 52×49×38cm, Gross Weight 32.5kg (robust tour-friendly packaging—resists bumps during multi-city transport) |
