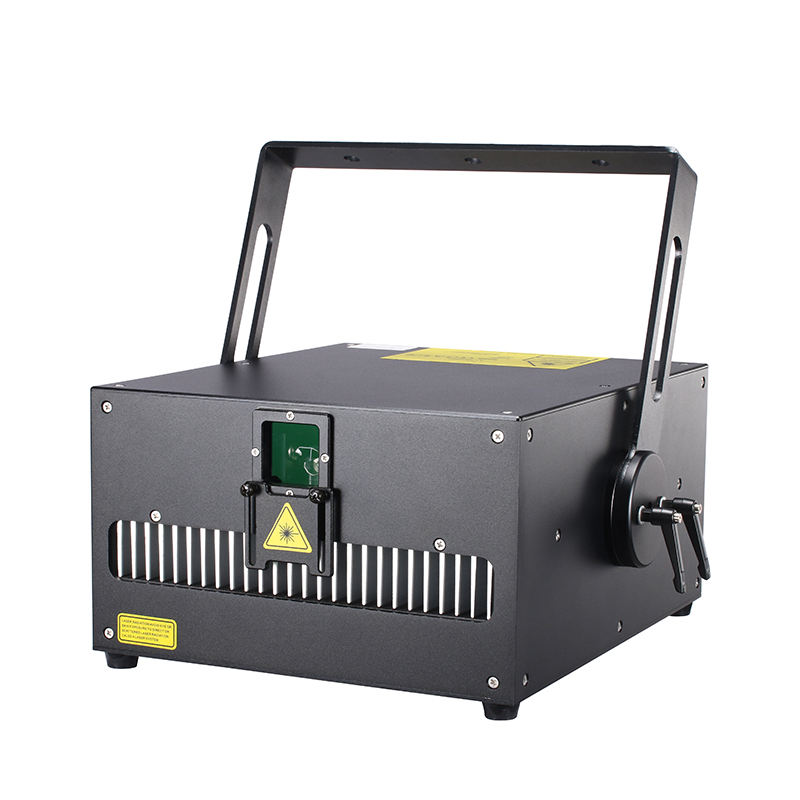

20W RGB 動畫雷射燈條 FB4
- 20W Ultra-High-Power Balanced RGB Nichia Diodes: 6W red + 6W green + 8W blue deliver uniform, vivid colors across 800-3000㎡ spaces—solves the “faded brightness” problem in large stadiums or daytime events; balanced RGB ensures brand-specific hues (e.g., corporate blue, team red) remain accurate, critical for branded shows.
- IP33 Semi-Outdoor Durability for Mega-Events: Splash/dust resistance fits covered large-scale scenarios (stadium concourses, festival main stages with canopies); double-layer sealed optical path prevents dust, moisture, or concert fog from damaging internal components—ensures reliability for 100+ shows per year.
- 100k Analog/TTL Modulation for Sharp Transitions: Fast modulation ensures smooth color shifts and effect changes—critical for complex laser storytelling (e.g., blending beam shows with live performances); avoids “flicker” that causes audience eye strain in long-duration events (e.g., 3-hour concerts).
- Global Compatibility & Long Lifespan: AC 100-240V works with power grids worldwide (US 110V, EU 220V, Asia 220V), ideal for international tours; Nichia diodes with low light decay extend professional service life to 12,000+ hours—an investment-friendly choice for high-use large-event fleets.
Request a Quote
Send us your requirements for this product. Product information will be included automatically.
- 產品
- 20W RGB 動畫雷射燈條 FB4
- SKU
- CT-LL-20-C3F4
描述
技術規格
| 型號 | CT-LL-20-C3F4 |
|---|---|
| 參數 | 價值與場景導向詮釋 |
| 輸入電壓 | AC 100~240V, 50/60Hz (Global wide voltage, compatible with stadium power grids and international tour generators—no voltage converters needed for cross-border use) |
| Light Source (Core Upgrade: 20W Balanced RGB) | Brand: Japan Nichia (industry-leading diode brand—low light decay, stable output for frequent high-power use); Power Breakdown: – R: 6000mW@638nm (high-saturation red for bold brand logos/text); – G: 6000mW@520nm (vibrant green for natural, eye-catching animations); – B: 8000mW@445nm (ultra-bright blue for vivid contrasts in bright venues); Total Power: 20W (33% brighter than 15W models—ensures clarity in 800-3000㎡ spaces like large stadiums or daytime exhibitions) |
| Scanning & Beam Performance | Scanner: 50K high-speed scanner (smooth motion for fast-moving animations—avoids jitter in large-scale beam flows or scrolling lyrics); Beam Specification: ~6.5mm diameter / 1.3mrad divergence (narrow, focused beam for sharp projections at long distances—up to 80m, ideal for stadium end-zone backdrops); Scanning Angle: Maximum 60° (wide coverage for large stage setups—reduces the number of fixtures needed to cover extra-large areas) |

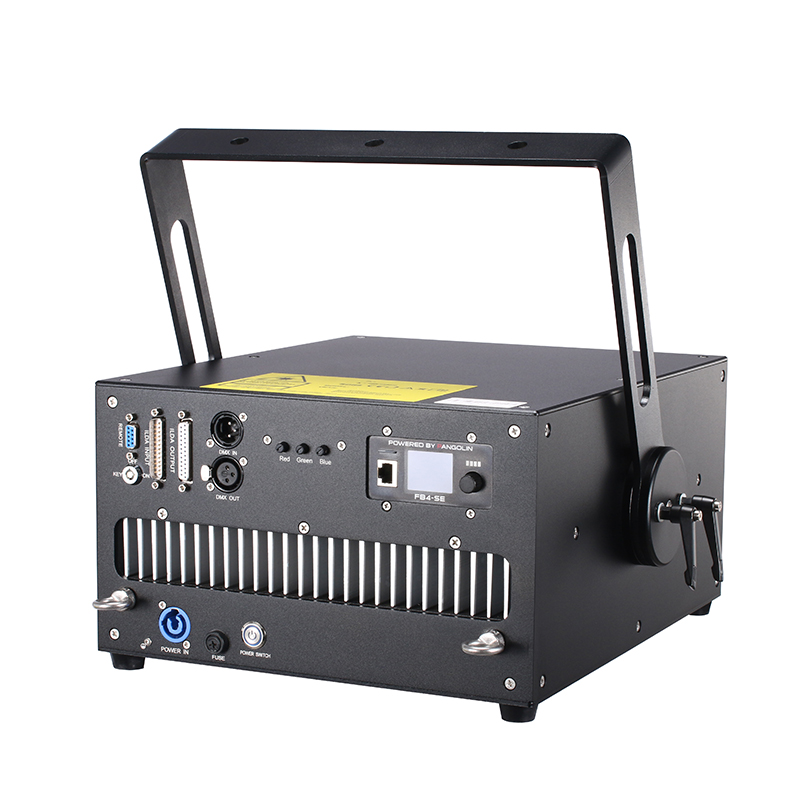

| Control & Modulation | Control Modes: ILDA (professional software programming via Pangolin Beyond), Voice Control (hands-free DJ adjustments), Auto-Propelled (pre-set programs for quick setup), DMX512 (sync with large stage lighting systems), Master-Slave (multi-light sync without console), SD Card (offline custom animations); Modulation Mode: 100k analog/TTL (fast response for sharp color transitions—critical for complex laser sequences in large-scale shows); Laser Display: Supports text, animation, beam effects, logos, and custom designs (flexible for brand storytelling or artistic performances) |
| Durability & Protection | Protection Level: IP33 (splash-proof, dust-resistant—suitable for semi-outdoor use like covered stadium concourses or festival main stages; not for heavy rain); Optical Path Sealing: Unique double-layer structure (optical path fully sealed—prevents dust/moisture intrusion, extending diode lifespan in high-use scenarios); Working Temperature: -20~35℃ (works in cool indoor arenas or semi-outdoor spring/autumn festivals—no performance loss under extreme temperature fluctuations) |
| Dimensions & Packaging (Tour-Ready) | Product Size: 37×31×35cm (compact design for ultra-high power—fits standard professional stage trusses, compatible with existing 15W model setups); Net Weight: 20kg (stable for high-altitude truss installation, no shaking during high-speed scanning); Packaging (Flight Box): 52×49×38cm, Gross Weight 32.5kg (robust tour-friendly packaging—resists bumps and impacts during multi-city transport, ensuring equipment integrity) |
